WOP-LB2F
Wincode Optronics

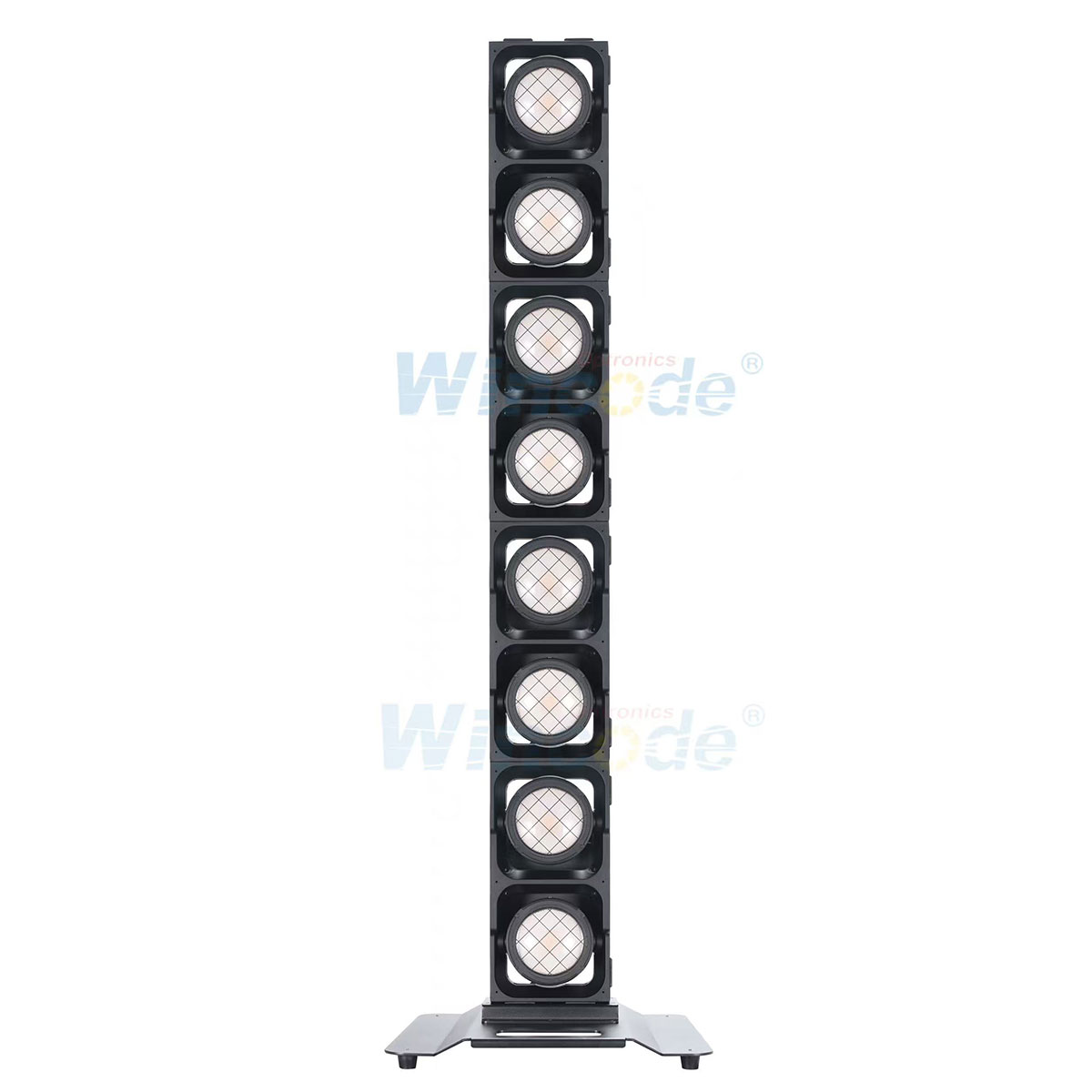

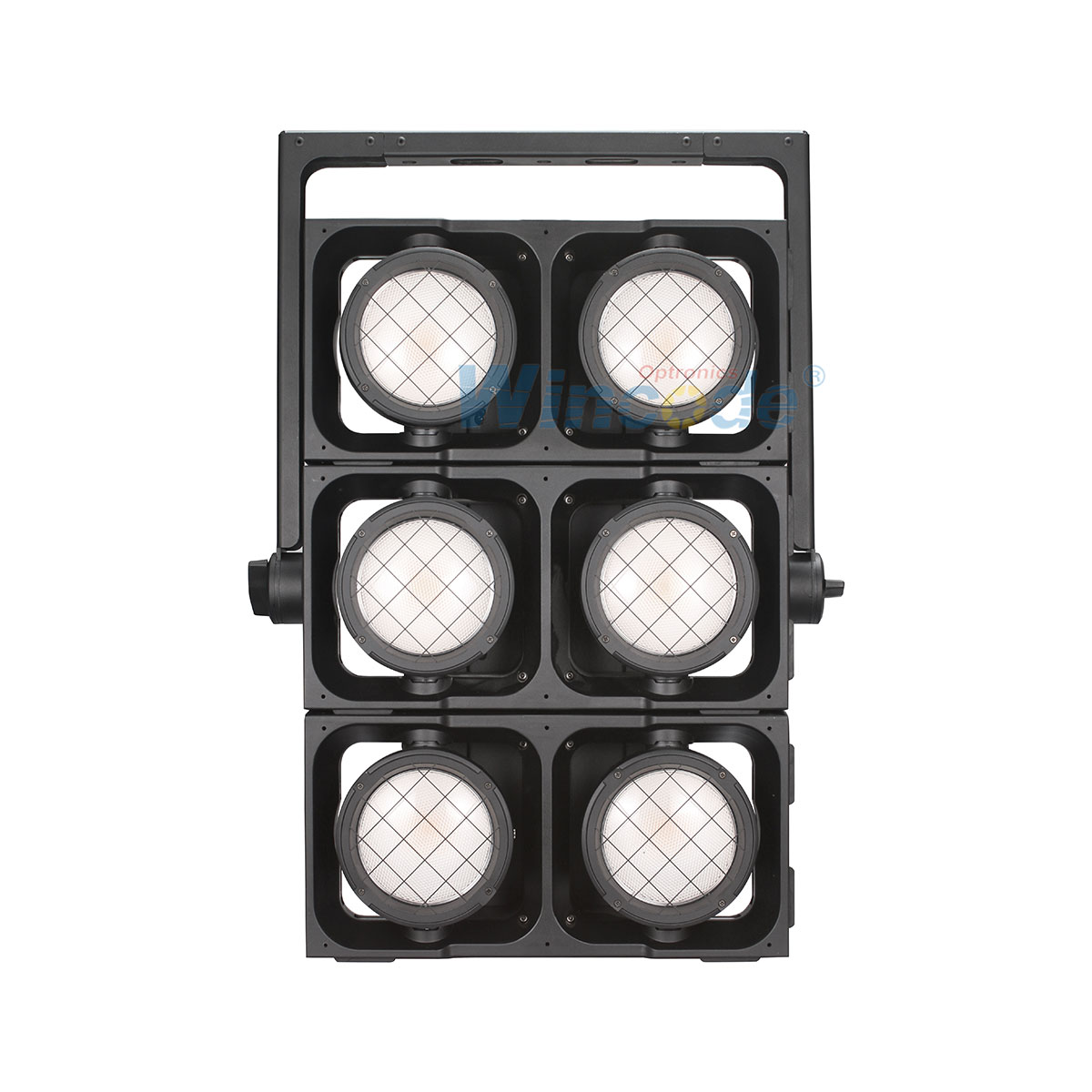

Introducing the Fusion B2, the ultimate companion to the renowned Roxx CLUSTER B2-FC. Engineered for professional stage lighting, the Fusion B2 delivers seamless compatibility, allowing you to expand your lighting arrays effortlessly while maintaining exceptional performance.
Full Compatibility: The Fusion B2 mirrors the CLUSTER B2-FC’s DMX channels, functions, and light library, ensuring effortless integration into existing control systems. It supports advanced features like 16-bit color mixing, ultra-smooth dimming, and the "shift to warm" functionality for a traditional incandescent look.
Identical Mounting Structure: Featuring the same C-Lok system and mounting options, the Fusion B2 connects with CLUSTER B2-FC units in any direction—up, down, left, or right—enabling versatile, scalable lighting configurations.
High Performance: Matching the CLUSTER B2-FC, the Fusion B2 offers high output with up to 60% less power consumption compared to traditional DWE blinders, delivering vibrant illumination for any stage.
Durability: With an IP65 rating, the Fusion B2 is dust- and water-resistant, making it ideal for both indoor and outdoor applications.
Ease of Use: Pre-link magnets and the tool-less C-Lok system enable rapid setup and alignment, streamlining the creation of complex lighting arrays.
The Fusion B2 is the perfect choice for lighting designers and technicians seeking reliable, high-performance LED blinders that integrate flawlessly with their Roxx CLUSTER systems, enhancing stage productions with ease and efficiency.
Introducing the Fusion B2, the ultimate companion to the renowned Roxx CLUSTER B2-FC. Engineered for professional stage lighting, the Fusion B2 delivers seamless compatibility, allowing you to expand your lighting arrays effortlessly while maintaining exceptional performance.
Full Compatibility: The Fusion B2 mirrors the CLUSTER B2-FC’s DMX channels, functions, and light library, ensuring effortless integration into existing control systems. It supports advanced features like 16-bit color mixing, ultra-smooth dimming, and the "shift to warm" functionality for a traditional incandescent look.
Identical Mounting Structure: Featuring the same C-Lok system and mounting options, the Fusion B2 connects with CLUSTER B2-FC units in any direction—up, down, left, or right—enabling versatile, scalable lighting configurations.
High Performance: Matching the CLUSTER B2-FC, the Fusion B2 offers high output with up to 60% less power consumption compared to traditional DWE blinders, delivering vibrant illumination for any stage.
Durability: With an IP65 rating, the Fusion B2 is dust- and water-resistant, making it ideal for both indoor and outdoor applications.
Ease of Use: Pre-link magnets and the tool-less C-Lok system enable rapid setup and alignment, streamlining the creation of complex lighting arrays.
The Fusion B2 is the perfect choice for lighting designers and technicians seeking reliable, high-performance LED blinders that integrate flawlessly with their Roxx CLUSTER systems, enhancing stage productions with ease and efficiency.
Power supply
Input voltage: AC 110V-240V 50/60Hz
Rated power: 600 W optical
Light source: 2×300W LED RGBAWW (1800K-10000K)
Type of optical system Reflector with Compound Eye Lens
LED PWM Frequency selectable 1kHz, 2kHz, 4kHz, 12kHz, 16kHz, 25kHz
Beam angle: 65°
Light spot angle:97°
Light source life: 20000 H
Color
The uniform color mixing system can adjust the effect of tungsten filament lamp.
Color rendering index: 95
Control and programming
Protocol: Standard DMX512/RDM
Data connection: waterproof three-core XLR input/output
Display: OLED display
Effect
8 types of built-in processes to choose from
Fast electronic strobe 1-20 Hz
Dimming modes: 5 kinds
Software
Convenient and fast upgrade through DMX signal update software
Silent waterproof fan, intelligent speed regulation
Temperature intelligent protection to ensure the service life of LED
Lamp body structure and heat dissipation
Aluminum alloy die-casting structure
Fan heat dissipation
Other
Protection level: IP65
Working environment: -40℃ ~ 45℃
Startup environment: -20℃ ~ 45℃
Size and weight
Size: 502 × 288 × 195 mm - Net weight: 9 kgs
Channels:
2CH DWE, 4CH DWE, 9CH DWE+, 6CH STROBE, 6CH RGB, 10CH BASIC
RGB, 14CH BASIC RGB, 11CH SECTION RGB, 11CH COMP RGB, 13CH STANDARD
RGB (default), 22CH STANDARD RGB, 24CH EXTENDED RGB, 33CH EXTENDED
RGB, 10CH DIRECT, 12CH DIRECT, 17CH DIRECT, 24CH DIRECT, 41CH DIRECT
Power supply
Input voltage: AC 110V-240V 50/60Hz
Rated power: 600 W optical
Light source: 2×300W LED RGBAWW (1800K-10000K)
Type of optical system Reflector with Compound Eye Lens
LED PWM Frequency selectable 1kHz, 2kHz, 4kHz, 12kHz, 16kHz, 25kHz
Beam angle: 65°
Light spot angle:97°
Light source life: 20000 H
Color
The uniform color mixing system can adjust the effect of tungsten filament lamp.
Color rendering index: 95
Control and programming
Protocol: Standard DMX512/RDM
Data connection: waterproof three-core XLR input/output
Display: OLED display
Effect
8 types of built-in processes to choose from
Fast electronic strobe 1-20 Hz
Dimming modes: 5 kinds
Software
Convenient and fast upgrade through DMX signal update software
Silent waterproof fan, intelligent speed regulation
Temperature intelligent protection to ensure the service life of LED
Lamp body structure and heat dissipation
Aluminum alloy die-casting structure
Fan heat dissipation
Other
Protection level: IP65
Working environment: -40℃ ~ 45℃
Startup environment: -20℃ ~ 45℃
Size and weight
Size: 502 × 288 × 195 mm - Net weight: 9 kgs
Channels:
2CH DWE, 4CH DWE, 9CH DWE+, 6CH STROBE, 6CH RGB, 10CH BASIC
RGB, 14CH BASIC RGB, 11CH SECTION RGB, 11CH COMP RGB, 13CH STANDARD
RGB (default), 22CH STANDARD RGB, 24CH EXTENDED RGB, 33CH EXTENDED
RGB, 10CH DIRECT, 12CH DIRECT, 17CH DIRECT, 24CH DIRECT, 41CH DIRECT
