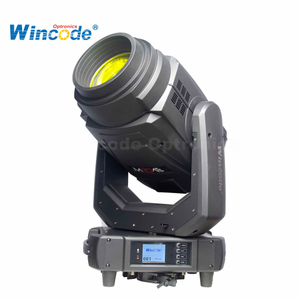

20R 440W CMY+CTO Hybrid Moving Head Light

Linear CMY color mixing
Color Temperature: 7800K
Rainbow effect
Zoom range:Beam Mode: 2°
Spot Mode: 5-32°
Wash Mode: 12-50°
3 x color wheels, each with 5 colors plus open and rainbow effect
1x rotating gobo wheel with 7 gobos plus open: convenient replacement
1x static gobo wheel with 18 gobos plus open
1x animation wheel
2x prisms: 8 facet + 6 facet, rotatable in both directions and overlayable
Smooth dimming from 0-100% imitate LED Linear Dimming
Linear motorized zoom and focus
Outstanding variable speed strobe effect
Availability:
Quantity:
  • WOP-M440PRO

  • Wincode Optronics

WOP-M440PRO 20R 440W Hybrid Moving Head Light High-end streamlined design, armed with 1 Original OSRAM 371W/461W discharge-lamp. Advanced optical lens group to make 2°beam mode, 3°-50°spot mode, Gobo wheel, color wheel, amination wheel, CMY, CTO to make beautiful effects for theatrical show, night club, TV show….The big difference from WOP-M440 is that WOP-M440PRO improved the shutter to imitate LED Linear Dimming; and improved the CMY Color Mixing Wheel to linear color mixing. Suitable for touring show, Theater...


Light Source

Source: OSRAM 371W/461W Optional
Color Temperature: 7800K
20000lm (source), 7800lm(fixture)
CRI: ≥78
Flicker free operation
for Night Club, Entertainment, Touring Concert
Life Span: 2000H
The life span may vary depending on several
following factors but not limited to:
Environmental Conditions, Power/Voltage,
Usage Patterns (On-Off Cycling), Control, etc.


Model

WOP-M440PRO



Optical System

Advanced optical system ensures clear, sharp image quality

High-efficiency optical zoom system



Control & Program

4-button touch panel

Display: TFT display

Protocols: DMX512, RDM

DMX protocol modes: 2

Control channels: 22, 25

Pan/Tilt Resolution: 16-bit

Linear CMY color mixing

Electronic ballast

Dimmer: 0-100% imitate LED Linear Dimming

Firmware upgrade via DMX link



Pan & Tilt

Pan movement: 540°

Tilt movement: 270°

Tilt lock

Automatic Pan/Tilt position correction



Rotating Gobos

1x rotating gobo wheel with 7 gobos plus open: convenient replacement

Slot & Lock system for gobo replacement




Static Gobos

1x static gobo wheel with 18 gobos plus open



Color Wheel

3 x color wheels, each with 5 colors plus open and rainbow effect



Electrical & Connectors

Power supply with electronic auto-ranging

Input voltage range: AC 100-240V, 50/60Hz

Power consumption: 600W

Power connector in

Data in/out: 3-pin and 5-pin XLR



Fixture Specification

Height: 667mm (26.2”)

Width: 335mm (11.0”)

Depth: 393mm (12.9”)

Weight: 23.5kg (51.8lb)



Work environment

Maximum ambient temperature: 45°C

Maximum surface temperature: 65°C

Minimum operating temperature: -5°C



Approvals

CE compliant



Installation

Horizontal or vertical mounting available

Operating position is universal

2x fast-lock clamps for 50mm truss

Safety cable attachment point

Tilt lock



Included items

User Manual

Power Cable

2x fast-lock clamps for 50mm truss
