WOP-STFRESNEL600-BI
Wincode Optronics
High-Performance Lighting: 600W COB LED with a constant 300W output, delivering bright and consistent illumination.
Bi-Color Flexibility: Adjustable color temperature from 2700K to 6500K with preset CCT options for warm and cool white lighting.
Superior Color Accuracy: CRI≥95 ensures vivid and accurate color rendering for professional applications.
Motorized Auto Zoom: Seamless zoom range from 15° to 55° for precise beam control.
Advanced Dimming: 0-100% dimming with 4 curve options (Linear, Exponential, Logarithmic, S-Curve) and multiple frequency settings (2K/5K/7K/9K/12K/14K/19K Hz).
Versatile Control: Supports DMX512 and RDM protocols with 3CH/10CH modes for flexible operation.
User-Friendly Interface: Blue LCD+ Bottons / Touch screen with 3-knob / Touch screen with Encoder control and Traditional Chinese operating interface for easy adjustments.
Efficient Cooling: MGCP heat pipe radiator and silent fan ensure no noise, with temperature rise below 20°C and intelligent automatic temperature adjustment.
Robust Design: Die-casting aluminum and profile materials, IP23 protection, and ±90° tilt angle for durability and flexibility.
Compact & Lightweight: Measures 441×306×246mm, weighs 9.0kg, and comes with convenient packing options for easy transport.
High-Performance Lighting: 600W COB LED with a constant 300W output, delivering bright and consistent illumination.
Bi-Color Flexibility: Adjustable color temperature from 2700K to 6500K with preset CCT options for warm and cool white lighting.
Superior Color Accuracy: CRI≥95 ensures vivid and accurate color rendering for professional applications.
Motorized Auto Zoom: Seamless zoom range from 15° to 55° for precise beam control.
Advanced Dimming: 0-100% dimming with 4 curve options (Linear, Exponential, Logarithmic, S-Curve) and multiple frequency settings (2K/5K/7K/9K/12K/14K/19K Hz).
Versatile Control: Supports DMX512 and RDM protocols with 3CH/10CH modes for flexible operation.
User-Friendly Interface: Blue LCD+ Bottons / Touch screen with 3-knob / Touch screen with Encoder control and Traditional Chinese operating interface for easy adjustments.
Efficient Cooling: MGCP heat pipe radiator and silent fan ensure no noise, with temperature rise below 20°C and intelligent automatic temperature adjustment.
Robust Design: Die-casting aluminum and profile materials, IP23 protection, and ±90° tilt angle for durability and flexibility.
Compact & Lightweight: Measures 441×306×246mm, weighs 9.0kg, and comes with convenient packing options for easy transport.
Voltage requirements:100V~240V,50/60Hz
LED Light Source:600W Bi-color
Rated Power: 300W
Color Temperature:2700K - 6500K adjustable & CCT Preset
Life: 50000h
Color Rendering: CRI≥95
Optical system: 175mm Fresnel glass optical lens;
Auto Zoom range: 15°~55°
Dimming: 0~100%
Dimming curves: 4 curves (Linear, Exponential, Logarithmic, S-Curve)
Zoom: Motorized Auto Zoom
Control Systems:DMX512,RDM
Dimming Frequency: 2K/5K/7K/9K/12K/14K/19K Hz selections
Channels: 3CH/10CH

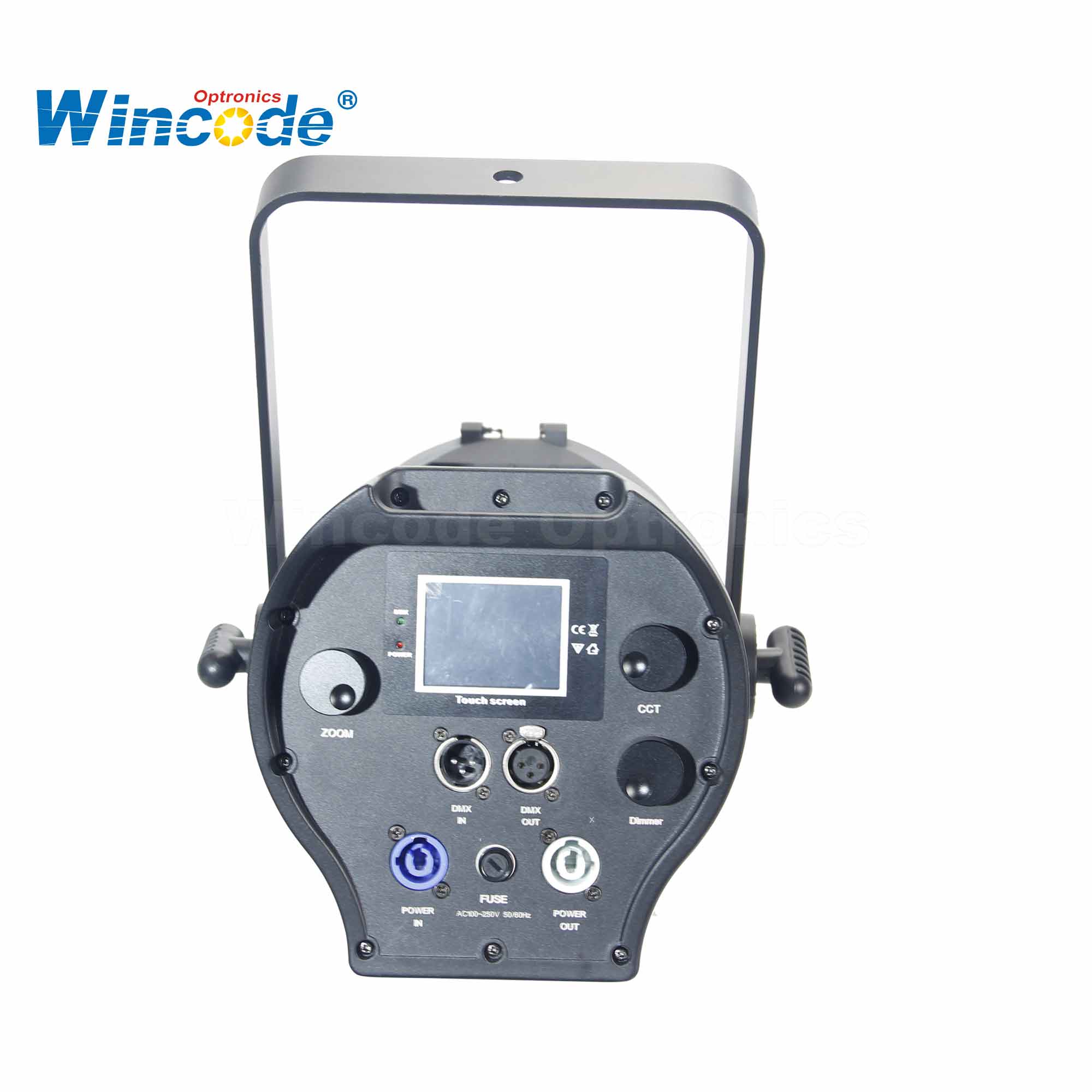

Working interface:Touch Screen+3 knobe Chinese/English operating interface for easy adjustments.
Use of the environment: -10℃~40℃
Cooling:MGCP heat pipe radiator + Silent fan for heat dissipation,no noise. Temperature rise does not exceed 20 ℃, intelligent automatic temperature adjustment system
Tilt angle: ± 90 °
Protection class: IP23
Materials: Die-casting Aluminum + Profile
Size:441×306×246mm
Net.Weight: 9.0kg
Packing Size: 540×350×290mm 1pcs/carton
570×380×260mm 2pcs/carton 23KG
