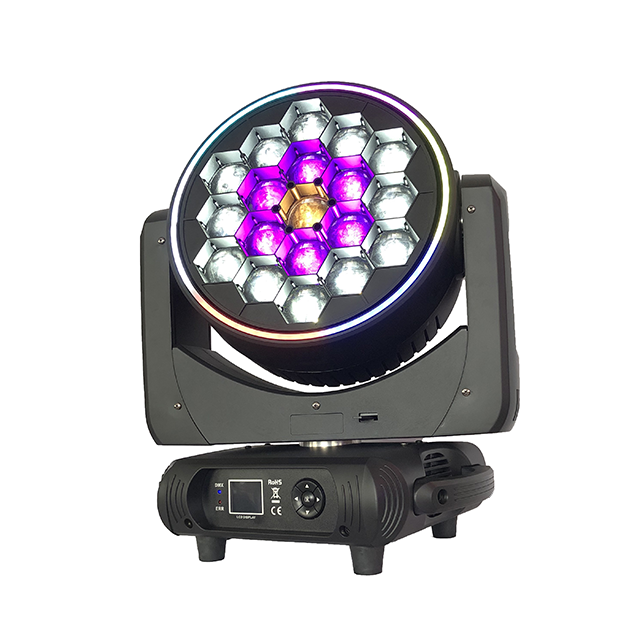

B-Eye K15 19×40W LED Moving Head Light

1.High power 19×40W RGBW 4 in 1 LEDs
2.Beam Wash Bee Eye effects
3.Pixel control
4.RDM Support
  • WOP-LM1940Z

  • Wincode Optronics

Light Source

Source: 40W RGBW 4-in-1 LEDs

Flicker free operation for broadcast TV and FILM

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)


19PCS high efficiency acrylic lens
Optimized light pipe for higher LED efficiency

6°-60°Smooth and quiet linear motorized zoom with fine control
360°Continuous front lends rotation with variable speed


PAN movement: 540° (8/16 bit)

PAN movement: 250° (8/16 bit)

Fast, quiet, smooth and precise 3-Phase motors

Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement

PAN/TILT reversible


19PCS high efficiency acrylic lens


Pixel mapping capability with each LED
Sophisticated 4 colors RGBW mixed

Even and soft light coverage with pure mixing
Linear color temperature adjustment
Preset color macros

Visual Effect

Different static shape selections

Different dynamic shape selections with variable speed
Shape fading effect
Shape color options with 0-100% dimming
Background colors options with 0-100% dimming
Ringlike LED pixel strip for magic visual effects

Strobe Effect

0-25Hz high speed shutter/strobe effect with variable speed
Random strobe effect with variable speed

Preset pulse strobe effect

Differenct forground/background strobe effect

Dimming System

0-100% Smooth linear LED dimming
Fine dimming control

Control System

22/26/36/78 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

Sound control sensitivity adjustable

Multi preset internal programs

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference
3-Pin XLR connectors IN/OUT
