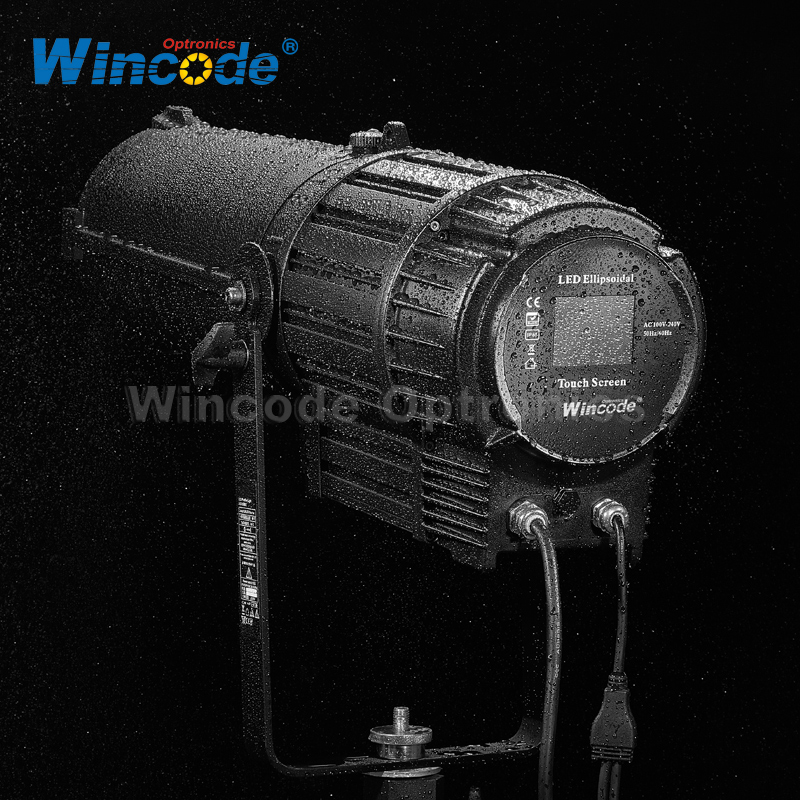

IP65 Outdoor RGBAL LED Ellipsoidal Profile Spot Light With Auto zoom Auto cutting

1. IP65 Outdoor LED Ellipsoidal Profile Spotlight
2. RGBAL 5 in 1 Fully Tuneable from 2,700 to 12,000K
3. 300W Single color / 300W RGBAL 5 in 1 / 600W 2 in 1 Bi-color light source optional.
4. Auto zoom Auto cutting (framing)
5. RDM / DMX512 Control
  • WOP-LK300FIP

  • Wincode Optronics

Light Source:

LED POWER: 300W/600W

LED Color: RGBAL 5in1/Single color WW or CW(300W)/2in1 CW+WW(300W)

Color temperature(300W 2in1): 3000K-6000K

Color temperature(300W 5in1):Fully Tuneable from 2,700 to 12,000K

LED Life Time: over 50,000 hours

Power supply:

Voltage: AC100-240V

Max Power: 300W


Zoom Function: Auto zoom

Beam Angle: 15°-30°

Dimming Curve: 4 kinds

Dimming Frequency: 500HZ - 25000HZ optional

Strobe :1-25times/sec


Shutter controlled by DMX (auto cutting to any shapes)

Housing: Die-casting Aluminum

Technology: High-quality optical system, glass aspherical

Touch screen: LCD with touch screen


Control Protocol: RDM / DMX

Control System: DMX, Auto run and Master/Slave

DMX Channels: 5/24CH(5IN1),17CH(2in1), 1/16CH(Single color)

Working Environment :

Working Temperature: -10°C~40°C

Cooling System: Fan-less no noise

IP Grade: IP65 waterproof


Net Weight: 16.5kgs

Gross Weight: 20kgs

Packing size: 86*37*35cm(1pc/carton)
