Extreme Output & Dual Optics: Powered by 504x1.5W RGB and 280x5W (6500K) white LEDs, it delivers a staggering 1500W of rated power. The 120° RGB beam and 60° white beam optics allow for both wide washes of color and intense, focused white strobe punches, creating incredible depth and contrast.
Full-Spectrum Pixel Control: The LEDs are arranged in 14 RGB and 28 white independently controllable segments. This advanced pixel-mapping capability enables stunning chase effects, graphic patterns, and dynamic animations across the fixture’s face, far beyond a simple single-source strobe.
Ultra-Fast & Precise Performance: Equipped with a 20Hz electronic shutter for blindingly fast strobe effects and 8-16 bit movement resolution with 185° tilt for smooth, accurate positioning. Temperature-controlled cooling ensures consistent performance night after night.
Professional Connectivity & Control: Offers unparalleled flexibility with a wide range of channel modes (8CH to 97CH), supporting DMX512, RDM for bidirectional communication, Art-Net, and sACN. Features IP65-rated 5-pin XLR connections and PowerCON TRUE1 for robust, weather-resistant linking.
Built for Touring & Outdoors: The IP65 waterproof rating and rugged housing make it ideal for outdoor festivals, arena tours, and demanding rental applications. Includes foldout safety eyelets, omega bracket mounting, and an optional 4-way flight case for transport.
| Quantity: | |
|---|---|
WOP-LE3015
Wincode Optronics
Product Overview

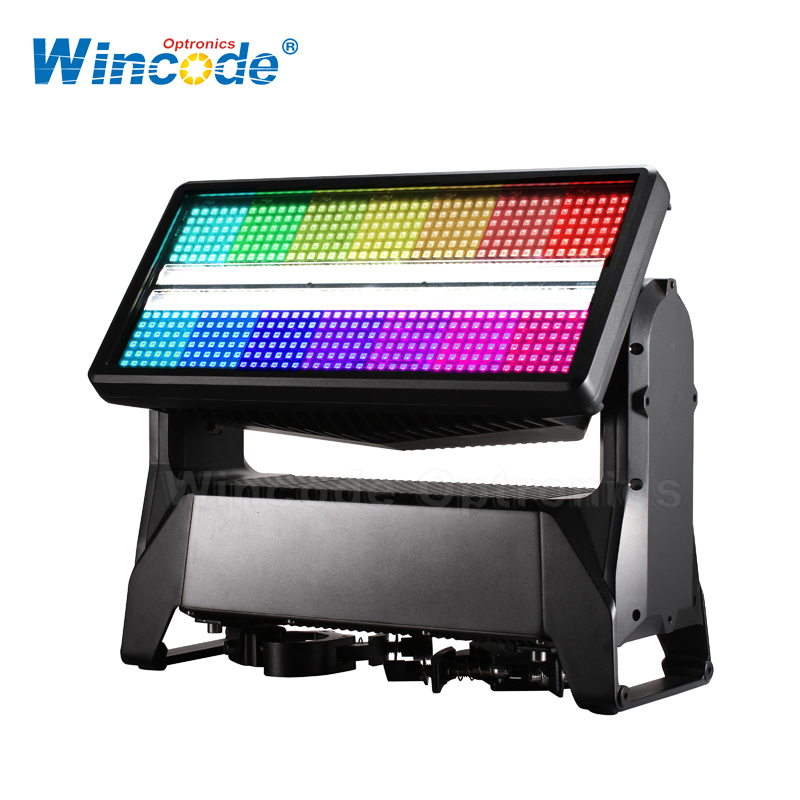

Unleash unparalleled visual power with the ThunderStrike, a professional-grade, IP65-rated waterproof LED moving strobe. Designed to withstand the rigors of touring and outdoor events, this fixture combines the intense, high-speed impact of a strobe with the versatility and color-mixing of a moving head. Featuring a massive array of 504 RGB and 280 pure white LEDs, it delivers breathtaking brightness and effects, from lightning-fast punches to sweeping pixel-matrix animations. With support for DMX, RDM, Art-Net, sACN, and optional wireless DMX, it integrates seamlessly into any modern control setup.
Key Features & Benefits
Extreme Output & Dual Optics: Powered by 504x1.5W RGB and 280x5W (6500K) white LEDs, it delivers a staggering 1500W of rated power. The 120° RGB beam and 60° white beam optics allow for both wide washes of color and intense, focused white strobe punches, creating incredible depth and contrast.
Full-Spectrum Pixel Control: The LEDs are arranged in 14 RGB and 28 white independently controllable segments. This advanced pixel-mapping capability enables stunning chase effects, graphic patterns, and dynamic animations across the fixture’s face, far beyond a simple single-source strobe.
Ultra-Fast & Precise Performance: Equipped with a 20Hz electronic shutter for blindingly fast strobe effects and 8-16 bit movement resolution with 185° tilt for smooth, accurate positioning. Temperature-controlled cooling ensures consistent performance night after night.
Professional Connectivity & Control: Offers unparalleled flexibility with a wide range of channel modes (8CH to 97CH), supporting DMX512, RDM for bidirectional communication, Art-Net, and sACN. Features IP65-rated 5-pin XLR connections and PowerCON TRUE1 for robust, weather-resistant linking.
Built for Touring & Outdoors: The IP65 waterproof rating and rugged housing make it ideal for outdoor festivals, arena tours, and demanding rental applications. Includes foldout safety eyelets, omega bracket mounting, and an optional 4-way flight case for transport.
Complete Technical Specifications
Light Source | 504 pcs x 1.5W RGB LEDs + 280 pcs x 5W White LEDs (6500K) | ||
Pixel Segments | RGB: 14 segments (2x7) / White: 28 segments (2x14) | ||
Beam Angle | RGB: 120° / White: 60° | ||
Power | Voltage: AC 100-240V, 50/60Hz | Rated: 1500W | Max: 1800W |
Movement | Tilt: 185° | Resolution: 8-16 Bit | |
Control | Protocols: USITT DMX-512, RDM, Art-Net, sACN | Wireless: Optional 2.4GHz W-DMX | |
Channel Modes | 8, 18, 25, 95, C-8, C-11, C-13, C-24, C-30, C-47, C-68, C-74, C-97 | ||
Shutter & Dimmer | Electronic Shutter (max. 20Hz) | 0-100% Electronic Dimmer | |
Display | Illuminated Graphic LCD Touch Screen | ||

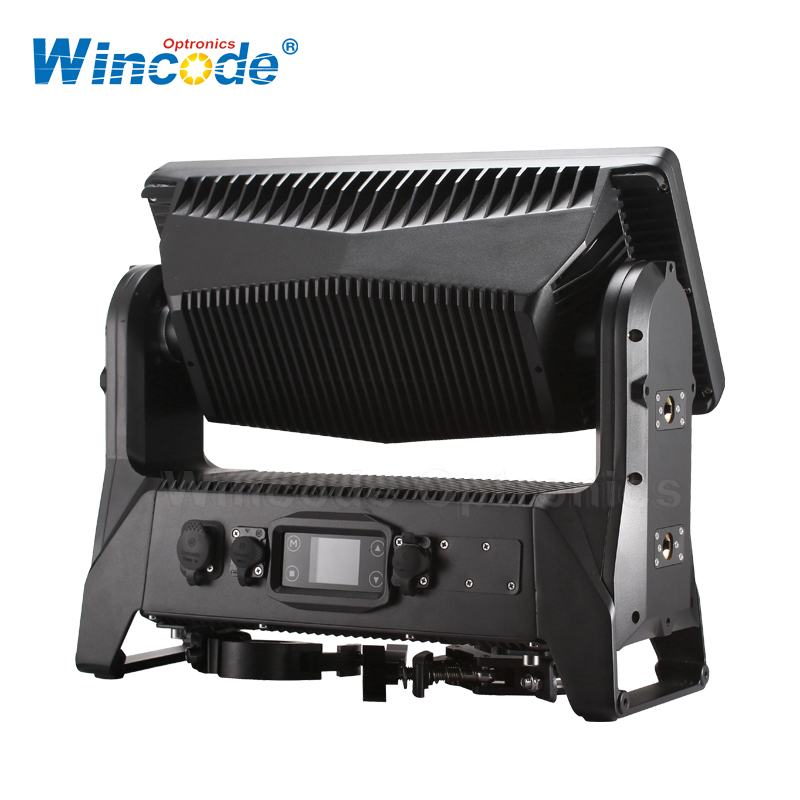

Connections | Signal: IP65 XLR 5/3-Pin In/Out | Data: RJ45 Art-Net In/Out | Power: PowerCON TRUE1 In |

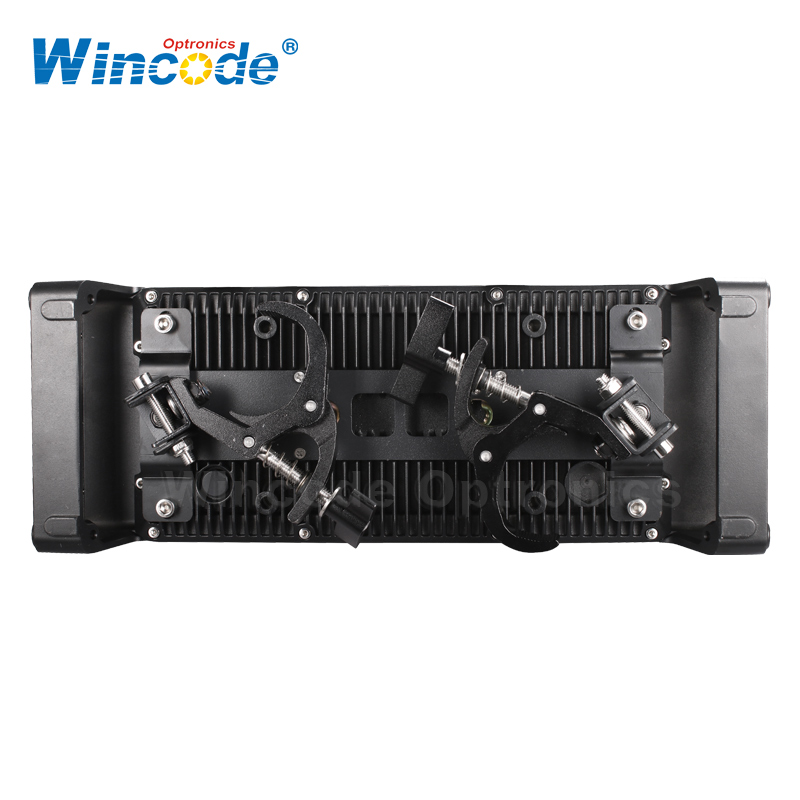

Housing & Mounting | Color: Black | IP65 Rated | Omega-Bracket, Foldout Eyelets, Optional Clamps |
Environmental | Operating Temp: -30°C to 50°C (-22°F to 122°F) | Position: Any | |
Dimensions & Weight | Fixture: 482 x 178 x 243 mm | Net Weight: 13.0 kg | Gross Weight: 16.0 kg |
Shipping | Single: Cardboard Box | Tourpack: 4-Way Flight Case (Highly Recommended) |
Compatibility & Show File Note
The ThunderStrike is engineered for seamless professional integration. Its channel modes and core functionality are designed to be fully compatible with the Chauvet Color STRIKE M. This allows lighting designers to easily use or adapt existing show files, significantly speeding up pre-production and programming time.
Ideal Applications
Outdoor Music Festivals & Stadium Tours (IP65 weatherproof)
Concert Tours requiring high-impact strobe and pixel effects
Nightclubs & Permanent Installations
Theatrical Productions needing intense, directional light bursts
Rental Companies seeking durable, versatile, and high-demand effects fixtures
What’s in the Box?
1 x ThunderStrike LED Moving Strobe Fixture
Power Cable
User Manual
(Optional) 4-Way Touring Flight Case for maximum protection.
