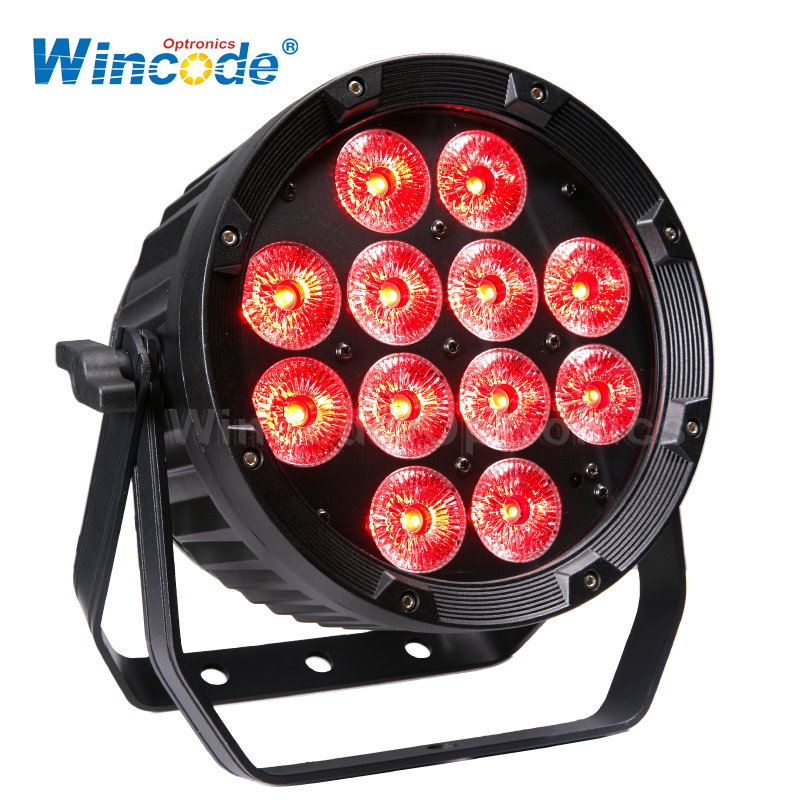

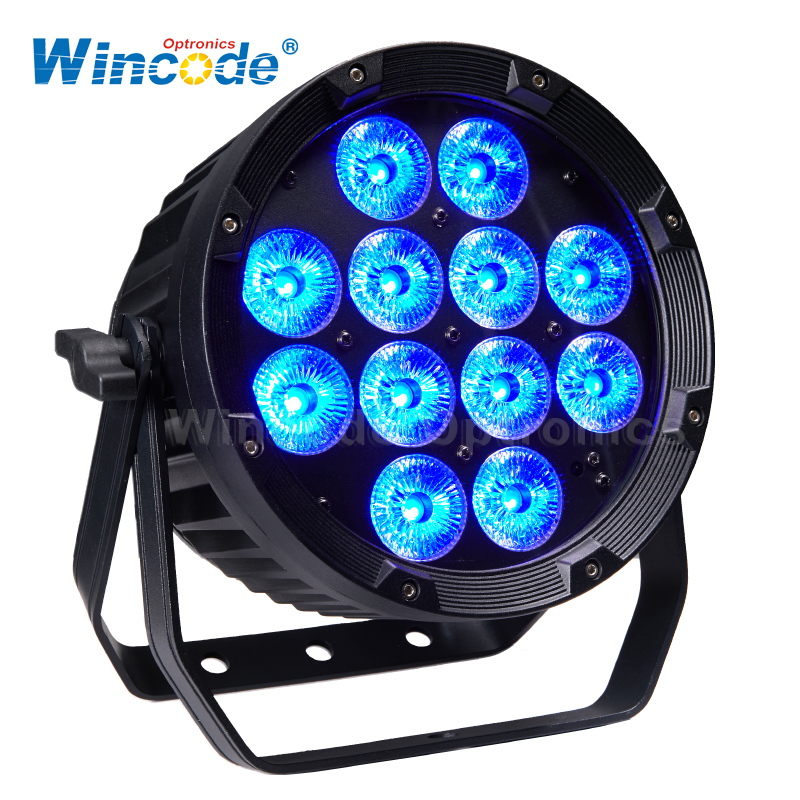

WOP-OP12
Wincode Optronics
| WOP-OP12104 | 12pcs 10W 4in1(RGBW) LEDs | |
| WOP-OP12155 | 12pcs 15W 5in1(RGBAW) LEDs | |
| WOP-OP12186 | 12pcs 18W 6in1(RGBAW+UV) LEDs | |
| Specification | ||
| Voltage Input: | 100-240V AC, 50/60Hz | Features: |
| . Constant Current Driver | ||
| . 32bit MCU with ARM Cortex | ||
| . 16bit PWM Dimming | ||
| LED Type: | TianXin 3in1/4in1/5in1/6in1 LEDs | . HDTV Video Flicker Free |
| Beam Angle: | 25 °/45 °/60 ° | . 3 DMX Channel Modes |
| Optical Lens Size: | 35/42mm | . Protocol RDM Compatible |
| Protocol: | USITT DMX-512, RDM compatiable | . Working Temperature Monitoring |
| DMX Channel Mode: | 4/6/9 or 5/7/10 or 6/8/11 | . Over-temperature Protection |
| Control Mode: | DMX-512, Standalone, Master/slave, Sound active | . Fanless and Quiet Working |
| Dimmer Mode: | 4 Linear or Curver Dimmer Modes | . LED Display Menu On/Off |
| PWM Dimming: | 16bit PWM Dimming at 1000HZ | . Sound Active Mode |
| Body Material: | Aluminum Die-casting | . Preset Colors. |
| Waterproo Grade: | Indoor or IP65 Outdoor for option | . Built-in Auto and Fade Program |
| Product Size | 156x264x268mm | . PowerCon AC power In/Out for Indoor |
| Net Weight.: | 4.5Kgs | . IP65 AC power In/Out for Outdoor |
| Carton Size.: | 590x370x300mm 4pcs/carton | . 3-pin XLR DMX In/Out for Indoor |
| Gross Weight.: | 26Kgs | . IP65 3-pin DMX In/Outfor Outdoor |
| WOP-OP12104 | 12pcs 10W 4in1(RGBW) LEDs | |
| WOP-OP12155 | 12pcs 15W 5in1(RGBAW) LEDs | |
| WOP-OP12186 | 12pcs 18W 6in1(RGBAW+UV) LEDs | |
| Specification | ||
| Voltage Input: | 100-240V AC, 50/60Hz | Features: |
| . Constant Current Driver | ||
| . 32bit MCU with ARM Cortex | ||
| . 16bit PWM Dimming | ||
| LED Type: | TianXin 3in1/4in1/5in1/6in1 LEDs | . HDTV Video Flicker Free |
| Beam Angle: | 25 °/45 °/60 ° | . 3 DMX Channel Modes |
| Optical Lens Size: | 35/42mm | . Protocol RDM Compatible |
| Protocol: | USITT DMX-512, RDM compatiable | . Working Temperature Monitoring |
| DMX Channel Mode: | 4/6/9 or 5/7/10 or 6/8/11 | . Over-temperature Protection |
| Control Mode: | DMX-512, Standalone, Master/slave, Sound active | . Fanless and Quiet Working |
| Dimmer Mode: | 4 Linear or Curver Dimmer Modes | . LED Display Menu On/Off |
| PWM Dimming: | 16bit PWM Dimming at 1000HZ | . Sound Active Mode |
| Body Material: | Aluminum Die-casting | . Preset Colors. |
| Waterproo Grade: | Indoor or IP65 Outdoor for option | . Built-in Auto and Fade Program |
| Product Size | 156x264x268mm | . PowerCon AC power In/Out for Indoor |
| Net Weight.: | 4.5Kgs | . IP65 AC power In/Out for Outdoor |
| Carton Size.: | 590x370x300mm 4pcs/carton | . 3-pin XLR DMX In/Out for Indoor |
| Gross Weight.: | 26Kgs | . IP65 3-pin DMX In/Outfor Outdoor |
