The Wincode AquaFramer Ultra 1200 (WOP-AF12) is a rugged, high-output 1000W LED moving head light with IP65 waterproof rating, delivering 22,000 lumens for stunning beam, spot, wash and framing effects. Engineered for both indoor and outdoor use, it features powerful CMY color mixing, variable CTO, full 4-blade framing with 120° rotation, dynamic animation wheel, multiple rotating prisms, and a wide 5°-50° linear zoom. Compact, reliable, and built for demanding professional stage, festival, concert and architectural lighting applications worldwide.
| Quantity: | |
|---|---|
WOP-AF12
Wincode Optronics
Wincode Optronics proudly presents the AquaFramer Ultra 1200 (Model: WOP-AF12), a professional-grade, fully sealed IP65-rated moving head fixture that combines extreme brightness with creative control. Powered by a powerful 1000W LED module, it produces 22,000 lumens and supports a versatile 5°–50° linear zoom range.
With its rugged, waterproof construction, the AquaFramer Ultra 1200 is designed for outdoor use — from dusty deserts and rainy festivals to open-air clubs and architectural lighting. Its durable sealed casing protects against dust, water, and weather, delivering reliable performance with minimal maintenance.
Powerful LED Engine: 1000W high-output LED module with 20,000-hour lifespan and switchable CRI (Ra>70 standard / Ra>90 high CRI mode).
Advanced Color System: Independent CMY color mixing + variable CTO (2500K–7000K) + 6 colors + open wheel for rich, dynamic color effects.
Precise Framing System: 4 independent positionable shutter blades, each individually blackout and rotatable 120° for sharp profile cuts and creative shaping.
Dynamic Animation Wheel: Superb simulation of leaping flames and flowing water effects.
Flexible Optical System: 5°–50° linear zoom, 160mm front lens, rotating 4 prisms + 6 rows prism, 0-100% linear frost, motorized iris (6%-100%), and electronic linear focus.
Gobo Effects: 8 pluggable fixed glass gobos + 7 pluggable rotating glass gobos (25.4mm diameter, 20mm image, 1.1mm thick).
Smooth Movement: Pan 540° / Tilt 270° with fine adjustment, 5-phase motor and magnetic encoding for precise positioning.
Professional Control: 0-100% linear dimming, 0-25Hz strobe (pulse/random), 36/42/60CH DMX512, RDM support, Auto, Master/Slave.
Professional Display: 2.8-inch Touchscreen LCD (Chinese/English) with 180° rotation.
Built for Outdoor Use: IP65 waterproof rating, 0-45℃ operating temperature, compact and lightweight design.
Outdoor festivals & concerts

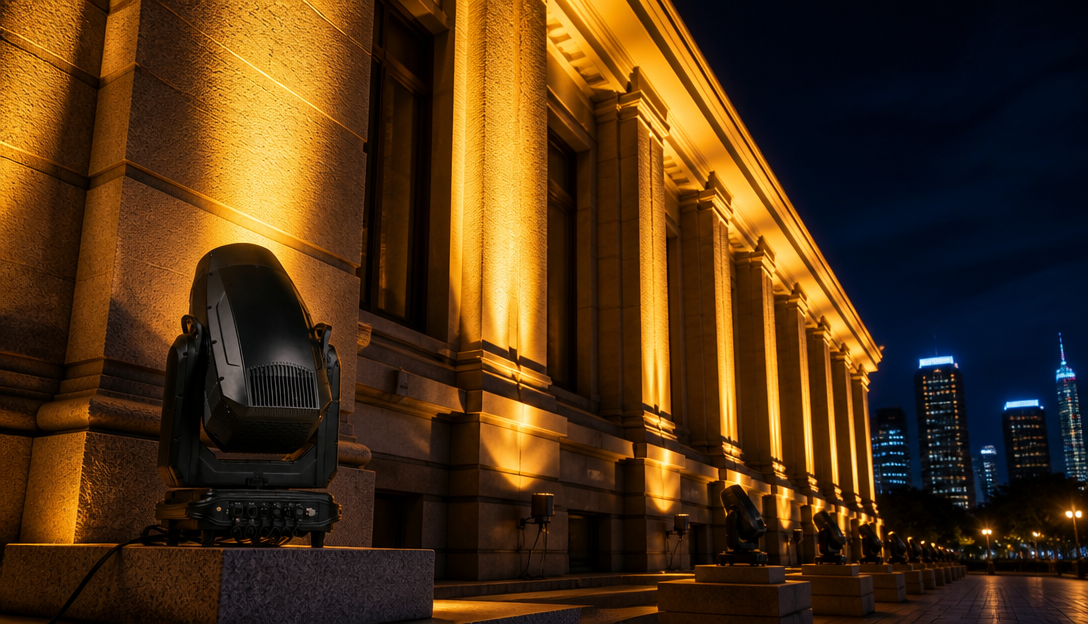

Architectural facade lighting
Open-air clubs & events
Theater & stage productions (indoor/outdoor)
Rental companies & touring shows
Public installations & water-resistant environments

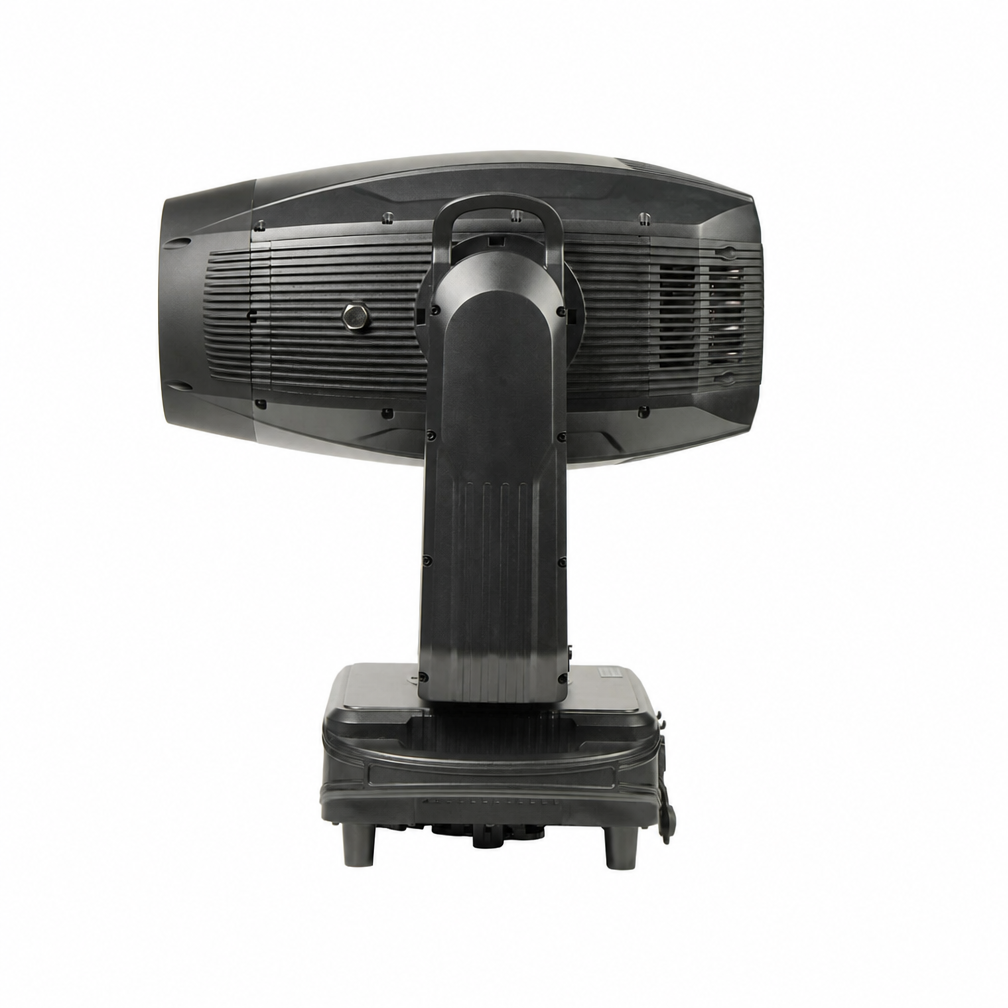

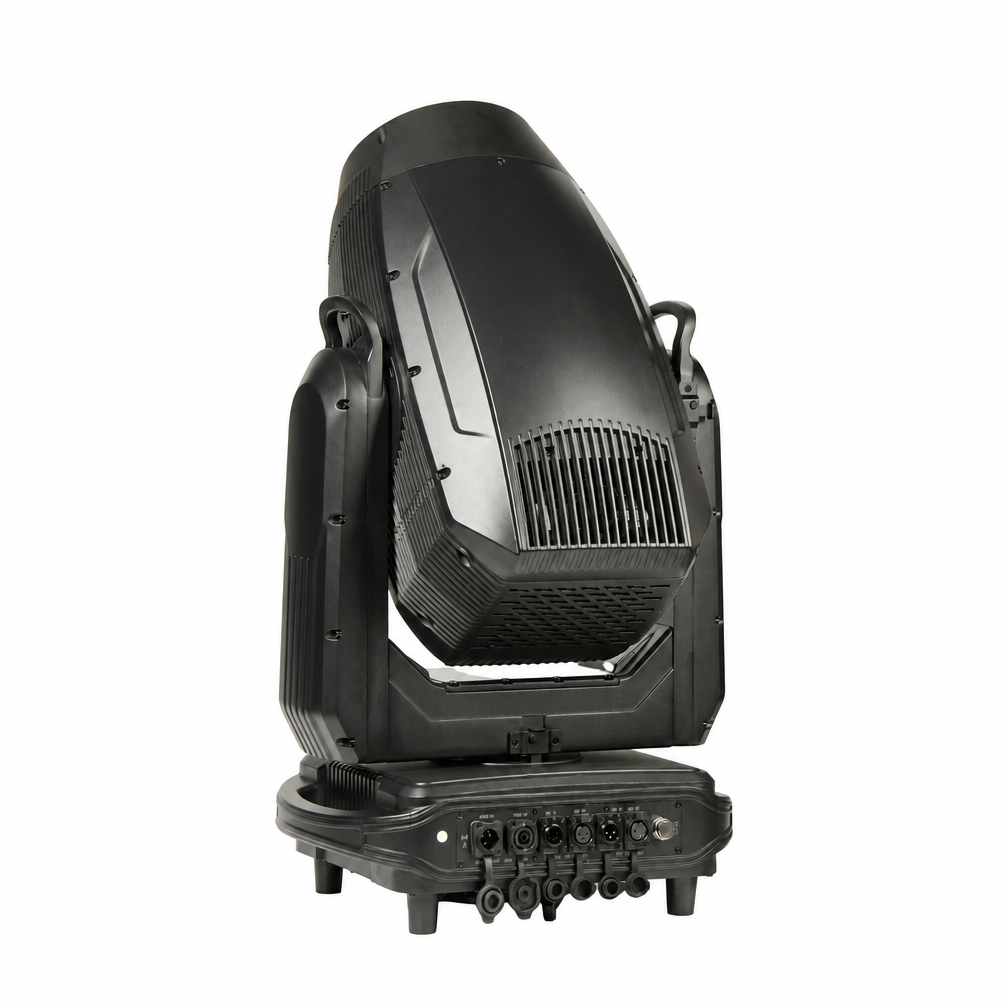

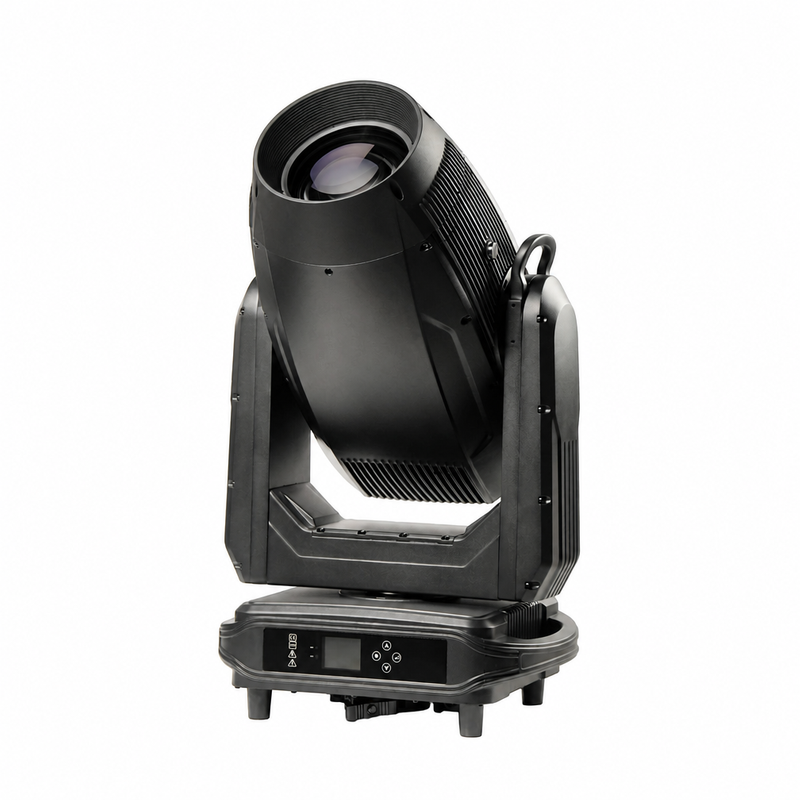

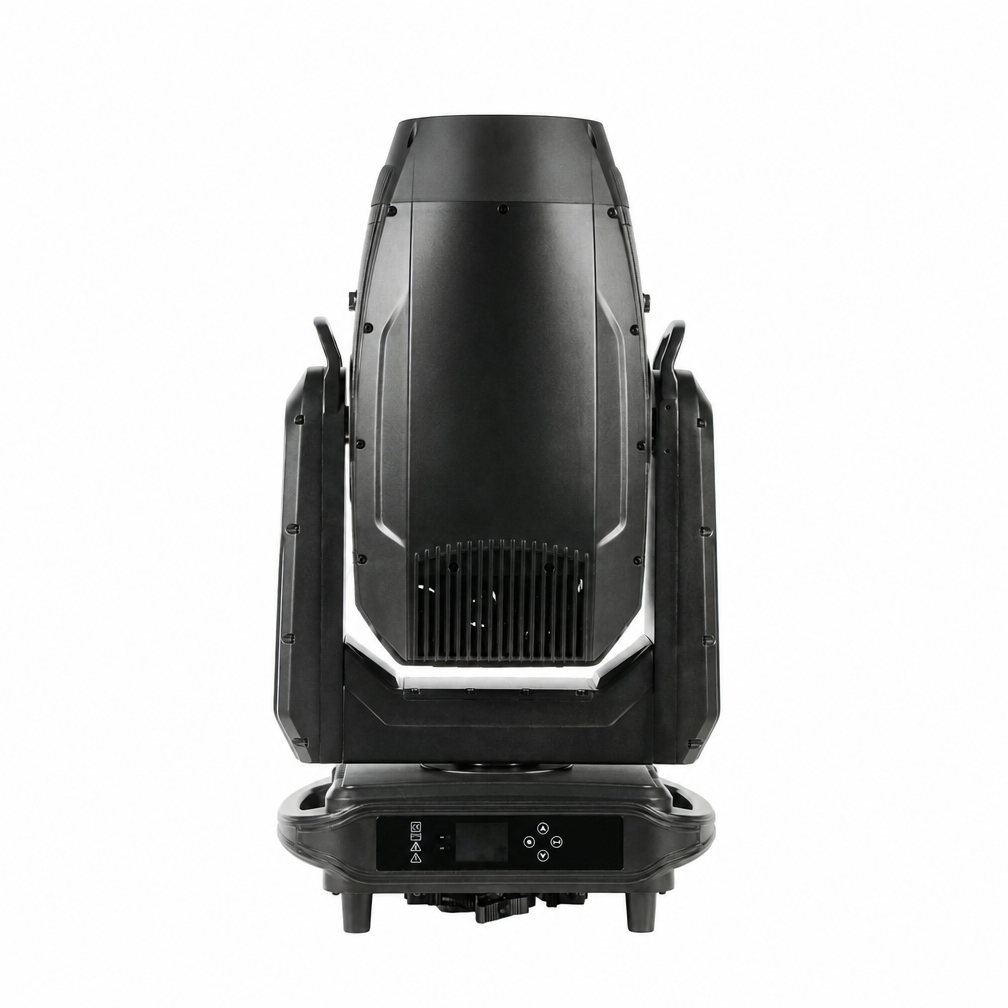

Main Product View

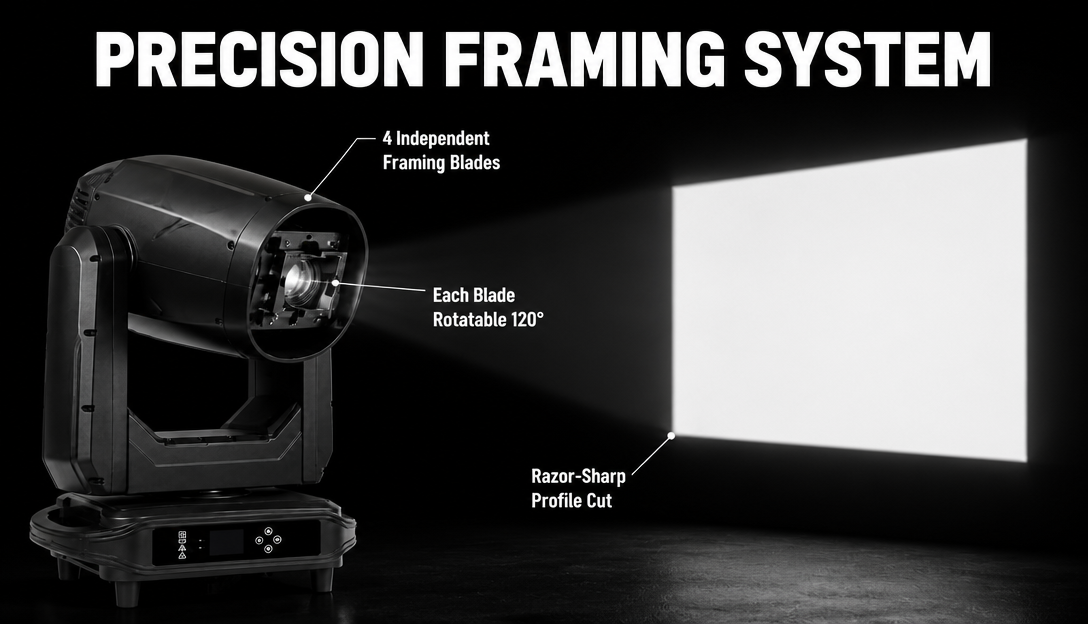

Close-up of 4-Blade Framing System

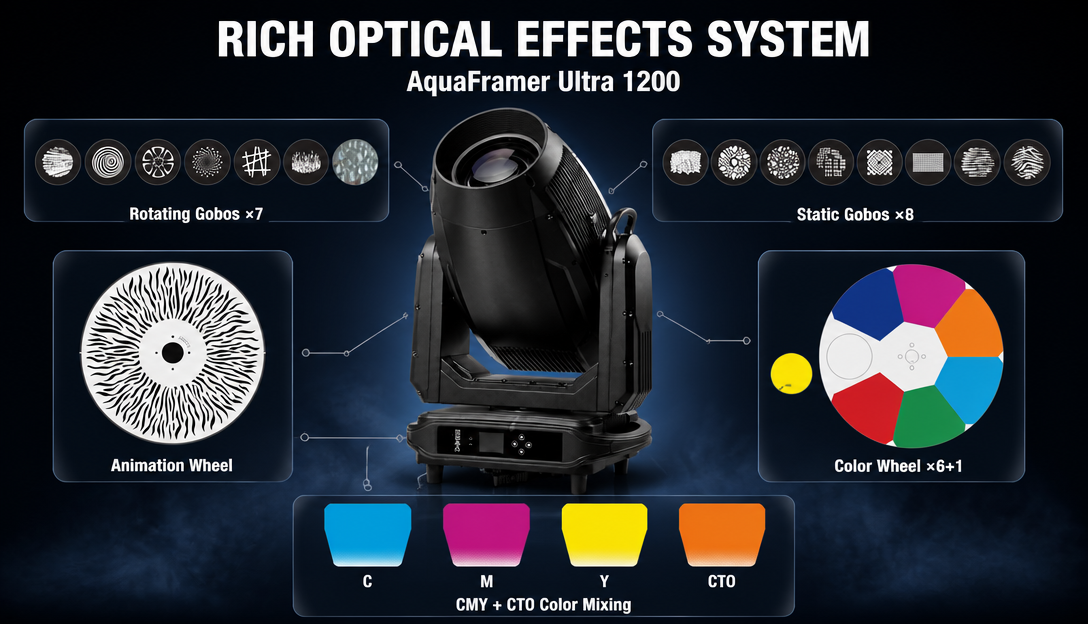

Animation Wheel & Gobo Effects

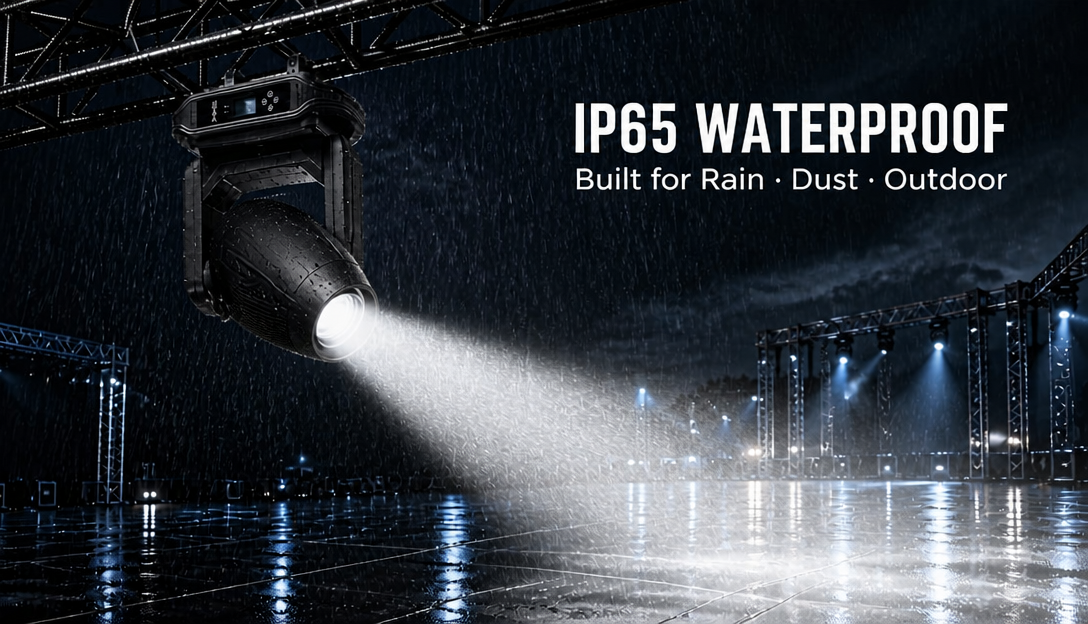

Outdoor IP65 Sealed Housing

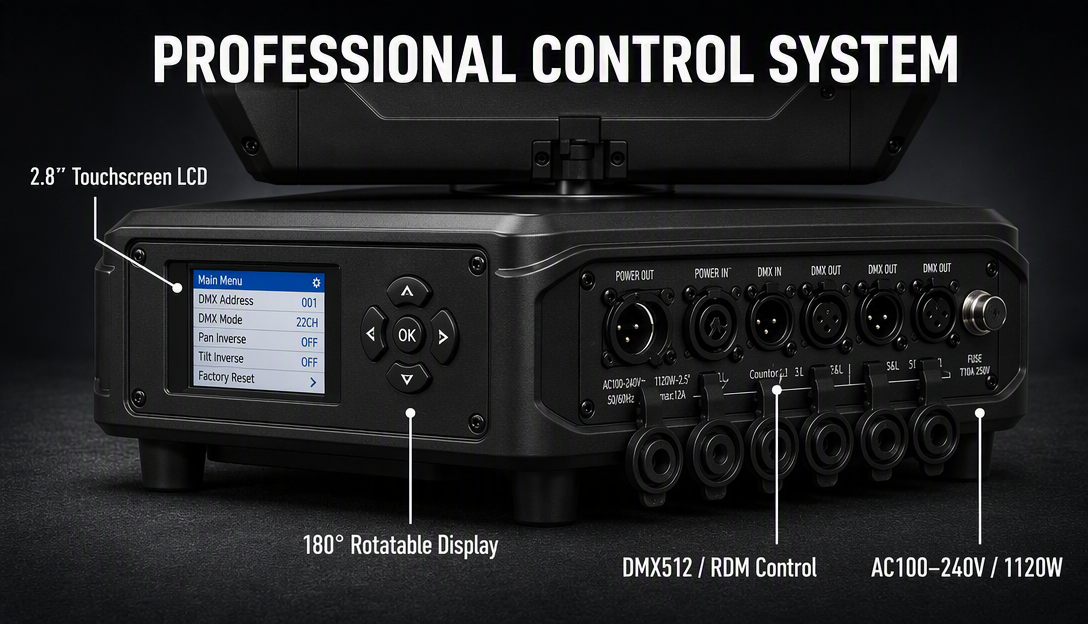

Pan/Tilt & Control Panel
The Wincode AquaFramer Ultra 1200 is the ultimate IP65 outdoor moving head — combining professional brightness, creative effects, and rugged reliability in one versatile fixture. Perfect for any high-demand professional lighting project.
Model: WOP-AF12 / AquaFramer Ultra 1200
Voltage: AC100-240V, 50/60Hz
Rated Power: 1120W
Light Source: 1000W LED Module
Luminous Flux: 22,000LM
Color Temperature: 7000K
CRI: Ra>70 (Standard) / Ra>90 (High CRI Mode)
Zoom: 5°–50° linear zoom
Pan/Tilt: 540° / 270° with fine adjustment & auto correction (5-phase motor, magnetic encoding)
Framing: 4 independent blades, rotatable 120°
Gobo Wheels: 8 fixed + 7 rotating pluggable glass gobos
Prism: Rotating 4 prisms + 6 rows prism
Animation Wheel: Dynamic flame & water effects
Control: DMX512 / RDM / Auto / Master-Slave
Display: 2.8-inch Touchscreen LCD (Chinese/English)
Dimensions: Compact sealed housing (refer to official dimensions for exact size)
Net Weight: Lightweight for easy transport and rigging
IP Rate: IP65 (Outdoor & Indoor Use)
Standard export carton packing or Flight case
Chargeable Flight case ( For Wireless Battery LED Lights )
3-20 days after confirming order,detail delivery date should be decided according to
production season, order quantity and shipping methods.
1. We will provide more precisely and efficiently manufacture and serve according to clients' drawings.
2. We have professional QC team to ensure your product much better.
3. Check the raw material before starting production.
4. Have the random inspection during the processing.
5. Make the 100% inspection before the shipments.
Guangzhou Wincode Optronics Co., Limited is a professional OEM,ODM,OBM manufacturer and exporter which specialized in manufacturing and marketing variety stage lights, PRO Lights, Architectural Lights, Commercial Lights. With much experiences and strict ISO9001 international standards. We are running our own brand "Wincode Optronics" in the global market for lighting. Our products are suitable for various entertainment and recreation place, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and so on.
Q1. How is your product quality?
Our products are made complying to CE/RoHS/UL standards, and tested for 48hrs before shipping ensuring items function well.
Q2. Why your pricing is higher than many other factories?
There’s no lowest price in the market.Pricing in WINCODE OPTRONICS is quite middle level, to ensure our requirements on quality and service, while be responsible for customers.
Q3. How to order lighting items from you?
You can contact our sells personnel to confirm what you need. You will be receiving a proforma invoice to confirm order and pay.
Q4. What payment modes are available?
T/T, Western Uion, Paypal , Money Gram are acceptable.
Q5. What’s the lead time for my order?
Usually for sample order, it takes roughly 5-7 business days.
While official mass order will take 15 to 20 business days to ship.
