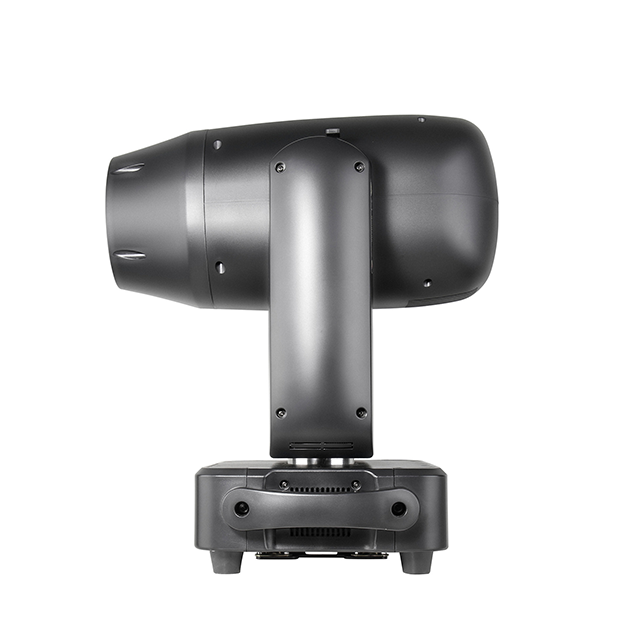

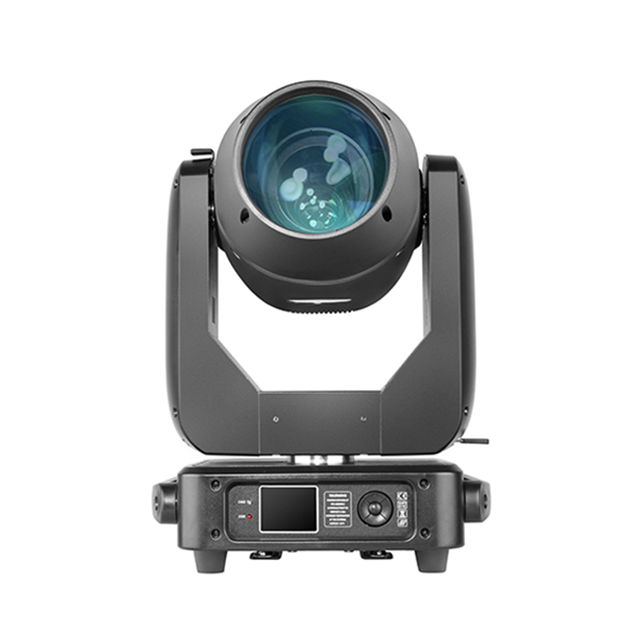

CMY+CTO 400W LED Beam Spot Wash 3 in 1 Hybrid Moving Head Light

1.High power 400W LED Engine
2.Beam Spot Wash 3 in 1
3.Linear CMY+CTO
4.RDM Support
  • WOP-LM1015

  • Wincode Optronics

The WOP-LM1015 is a new generation professional and intelligent Hybrid LED moving head Light, Beam spot, wash designed with a full CMY color mixing system plus CTO color correction, smooth and linear zoom from 4°-35°. The light features a new high intensity and efficiency cool white 400W LED engine (8500K) delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, a rotating gobo wheel with 7 rotating and interchangeable glass gobos, a static gobo wheel with 12 gobos, a color wheel with 8 dichroic colors, 2 rotating prisms, frost filter, linear electronic focus, linear dimmer, variable speed shutter/strobe, full color 180° reversible TFT display with 5 control buttons, etc. And supports DMX, RDM (Remote Device Management).

It’s fast and quiet operation hybrid LED moving head light. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, night club, etc.

Light Source

Source: 400W White LED engine
Color Temperature: 8500K (customizable)
CRI: ≥85(customizable)
Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),
Control, and Dimming)


A set of high resolution and precise optics
4°-35°Smooth and quiet linear motorized zoom
Smooth and precise linear focus
Fine control for focus


PAN movement: 540°(8/16 bit)
PAN movement: 270°(8/16 bit)
Fast, quiet, smooth and precise 3-Phase motors
Smooth, fast and precise resolution for PAN/TILT
movement with low noise operation
Scan position memory, auto reposition
after unexpected movement
PAN/TILT reversible

Color System

Full CMY color mixing system with linear CTO color correction
1 Color wheel with 8 dichroic colors plus open (half color mode available)
Variable direction rainbow effect with speed adjustable

Gobo System

1 Rotating gobo wheel with 7 rotatable and interchangeable
glass gobos plus open with speed adjustable, stream effect,
dithering effect and rotatable clockwise or anticlockwise
Gobo size 22.7mm (external)/14mm (inner)
Fine control for rotating gobo wheel
1 Static gobo wheel with 12 gobos plus open
Gobo overlay (gobo morphing)

Prism System

3-Facet prism with variable speed and direction
8-Facet prism with variable speed and direction

Strobe Effect

0-25Hz LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect

Dimming System

0-100% Smooth linear LED dimming

Control System

22/26 DMX channels USITT DMX-512
DMX512, master-slave, or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Shielded input signal protection for stable
signal without interference
3-Pin XLR DMX connectors IN/OUT

Wash System

Frost filter (Hybrid effect for wash)
Even and soft coverage

Software Update

Software up-datable through DMX connectors
Muilt units up-datable in daisy chain

Display System

2.8" TFT LCD display
5 Control buttons
180°Reversible for LCD display
Display auto OFF
DMX signal and error monitoring indicators

Cooling System

Advanced cooling system integrated aluminum and copper with liquid
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over temperature protection management

Power Supply

Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/ OUT with power switch and fuse
430W Power consumption


High intension moulded fire proof ABS PC
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black


2*1/4 turn fastening Omega Clamps
(Adaptable vertically and horizontally)
1*Safety attachment point

Operating Condition

Operating positions:
all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating


2014/35/EU - Safety of electrical
equipment supplied at low voltage (LVD)
2014/30/EU -
Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of
certain hazardous substances (RoHS)


N.W.: 22.5kg
G.W.: 25.5kg


Product Dimensions: 270(D)*381(W)*650(H)mm
Packing Dimensions: 520(D)*630(W)*500(H)mm
