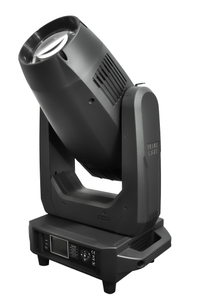

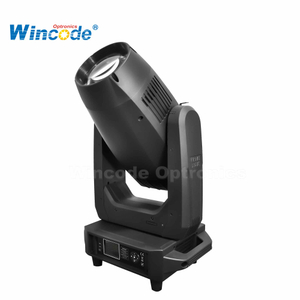

700W LED BSWF Hybrid Moving Head Light

1.High power 680W LED Engine
2.Beam Spot Wash Framing 4 in 1
3.Linear CMY+CTO
4.RDM Support
  • WOP-LM1018

  • Wincode Optronics

The WOP-LM1017 is a new generation professional and intelligent Hybrid LED moving head Light, Beam spot, wash, framing designed with a full CMY color mixing system plus CTO color correction, smooth and linear zoom from 7°-42°. The light features a new high intensity and efficiency cool white 680W LED engine (8500K) delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, a rotating gobo wheel with 7 rotating and interchangeable glass gobos, a static gobo wheel with 12 gobos, a color wheel with 8 dichroic colors, 2 rotating prisms, frost filter, linear electronic focus, linear dimmer, variable speed shutter/strobe, full color 180° reversible TFT display with 5 control buttons, etc. And supports DMX, RDM (Remote Device Management).

Light Source

Source: 680W White LED engine
Color Temperature: 6500K (customizable)
Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)


A set of high resolution and precise optics
7°-42°Smooth and quiet linear motorized zoom
Smooth electronic focus


PAN movement: 540°(8/16 bit)
PAN movement: 270°(8/16 bit)
Fast, quiet, smooth and precise 3-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT time controllable
PAN/TILT reversible and swap

Framing System

4-Motor driven 4-blade framing shutter system
90° bi-directional framing rotation
Fast, smooth and quiet framing and rotation
Smooth, flexible blade movements at variable speed to create different shapes
Smooth and quiet linear motorized Iris

Color System

Full CMY color mixing system with linear CTO color correction
1 Color wheel with 7 dichroic colors plus open (half color mode available)
Variable direction rainbow effect with speed adjustable

Gobo System

1 Rotating gobo wheel with 6 rotatable and
interchangeable glass gobos plus open with
speed adjustable, stream effect, dithering effect
and rotatable clockwise or anticlockwise
Gobo indexing available
1 Static gobo wheel with 8 gobos plus open
Gobo overlay (gobo morphing)

Animation System

Animation wheel (interchangeable with fixed gobo wheel)
Special dynamic flame or water effect, etc

Prism System

Facet linear prism with variable speed and direction

Strobe Effect

0-25Hz high speed LED shutter/strobe
effect with variable speed
Preset variable/random strobe and dimming pulse effect

Dimming System

0-100% Smooth linear LED dimming

Wash System

Linear frost filter (Hybrid effect for wash)
Even and soft coverage

Control System

34/54 DMX channels USITT DMX-512
DMX512, master-slave, or auto operation
DMX recorder and edit function integrated
RDM available
(Remote Device Management)
Art-NET optional
Shielded input signal protection for stable signal without interference
3-pin/5-pin XLR DMX connectors IN/OUT

Cooling System

Advanced cooling system
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over temperature protection management

Display System

2.4" TFT LCD display (320*240pix)
4 Control buttons
180°Reversible for LCD display
Display auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over temperature protection management

Power Supply

Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/ OUT with power switch and fuse
850W Power consumption


High intension moulded fire proof ABS PC
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black


2*1/4 turn fastening Omega Clamps
(Adaptable vertically and horizontally)
1*Safety attachment point

Operating Condition

Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating


2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)


N.W.: 30kg

G.W.: 33kg


Product Dimensions:283(D)*393(W)*742(H)mm

Packing Dimensions:349(D)*253(W)*739(H)mm
