The MiniFramer 600 (WOP-MF6) is a compact yet extremely powerful 600W LED BSWF 4-in-1 Moving Head Light designed for professional stage and event productions. Featuring a 580W high-output LED module, independent CMY color mixing, variable CTO, advanced 4-blade framing system with 90° rotation, and a wide 4°-35° linear zoom, it delivers exceptional beam, spot, wash, and precise profile effects in one versatile fixture. With high CRI up to 90, smooth dimming, and fast pan/tilt movement, the Mini 600W LED Framing Moving Head is the perfect choice for theaters, concerts, TV studios, and large-scale events.
| Quantity: | |
|---|---|
WOP-LM1012B
Wincode Optronics

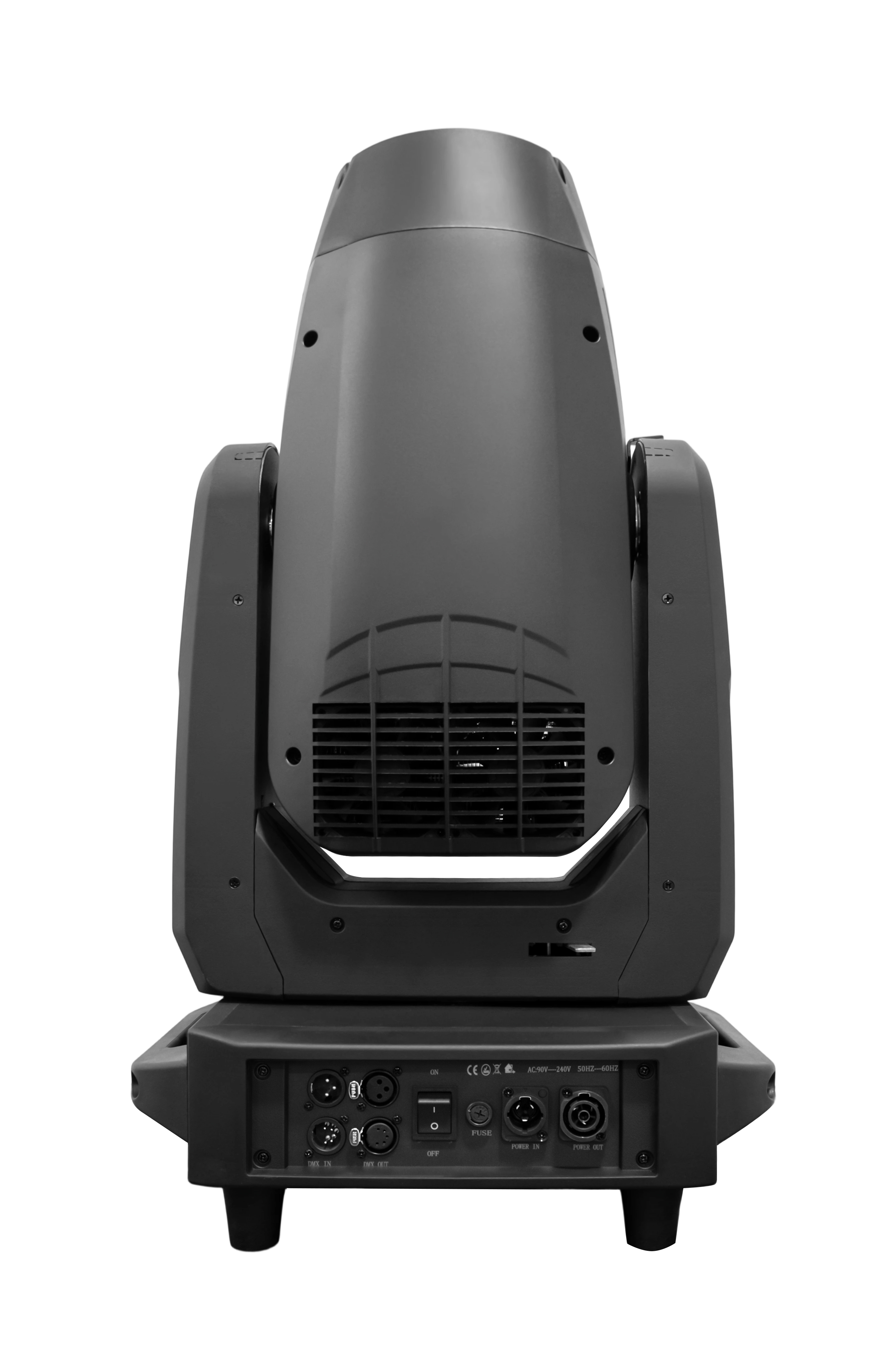

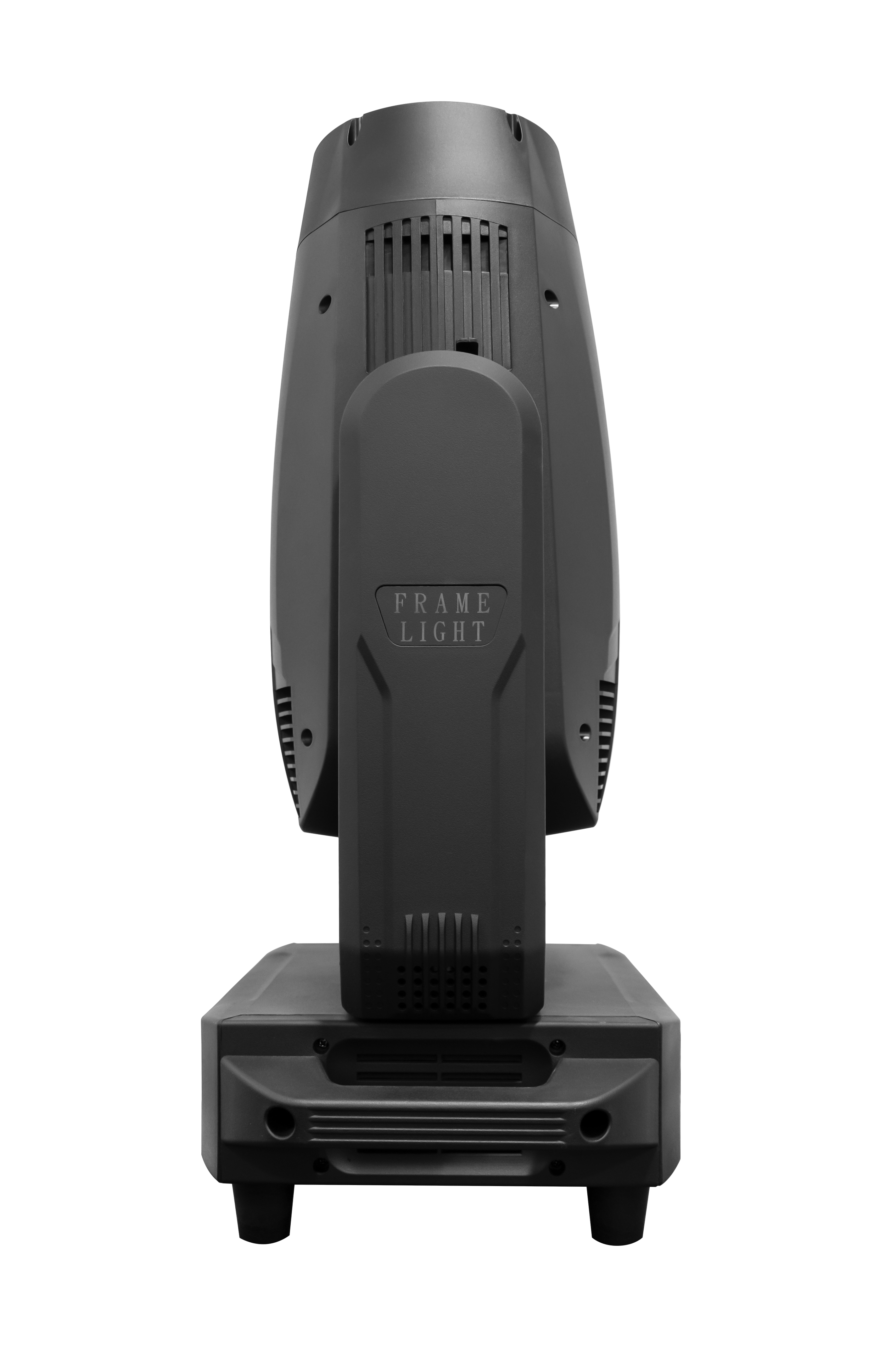

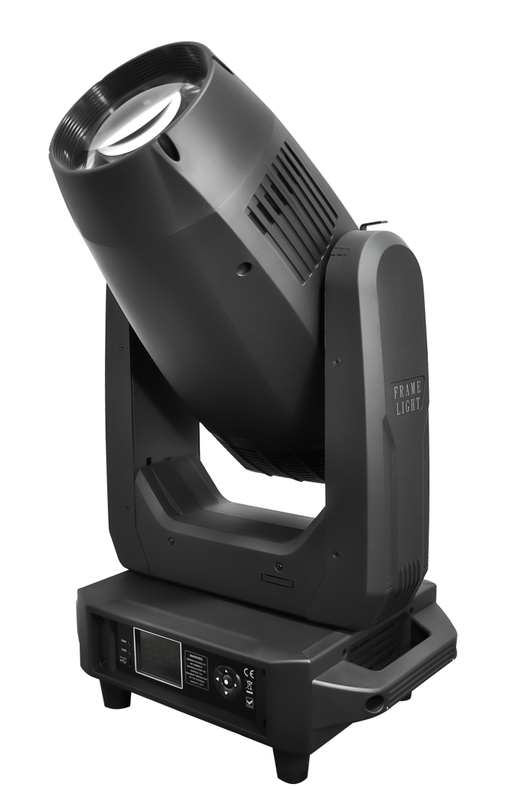

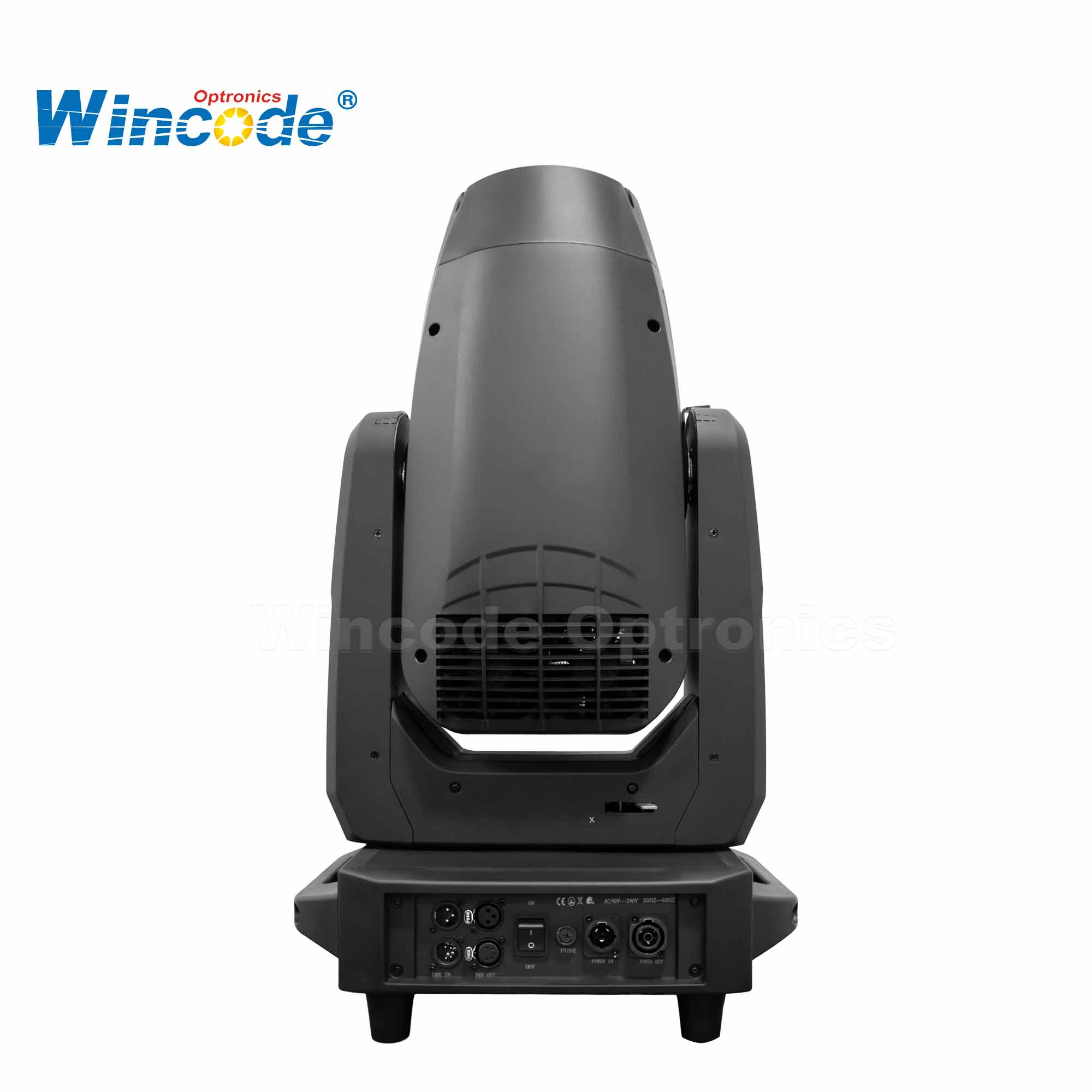

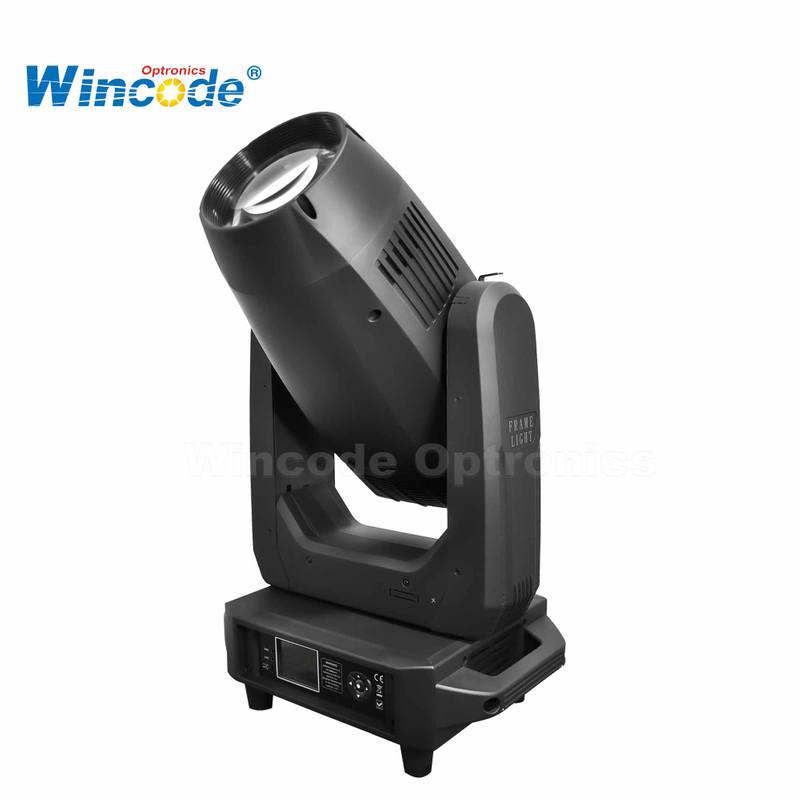

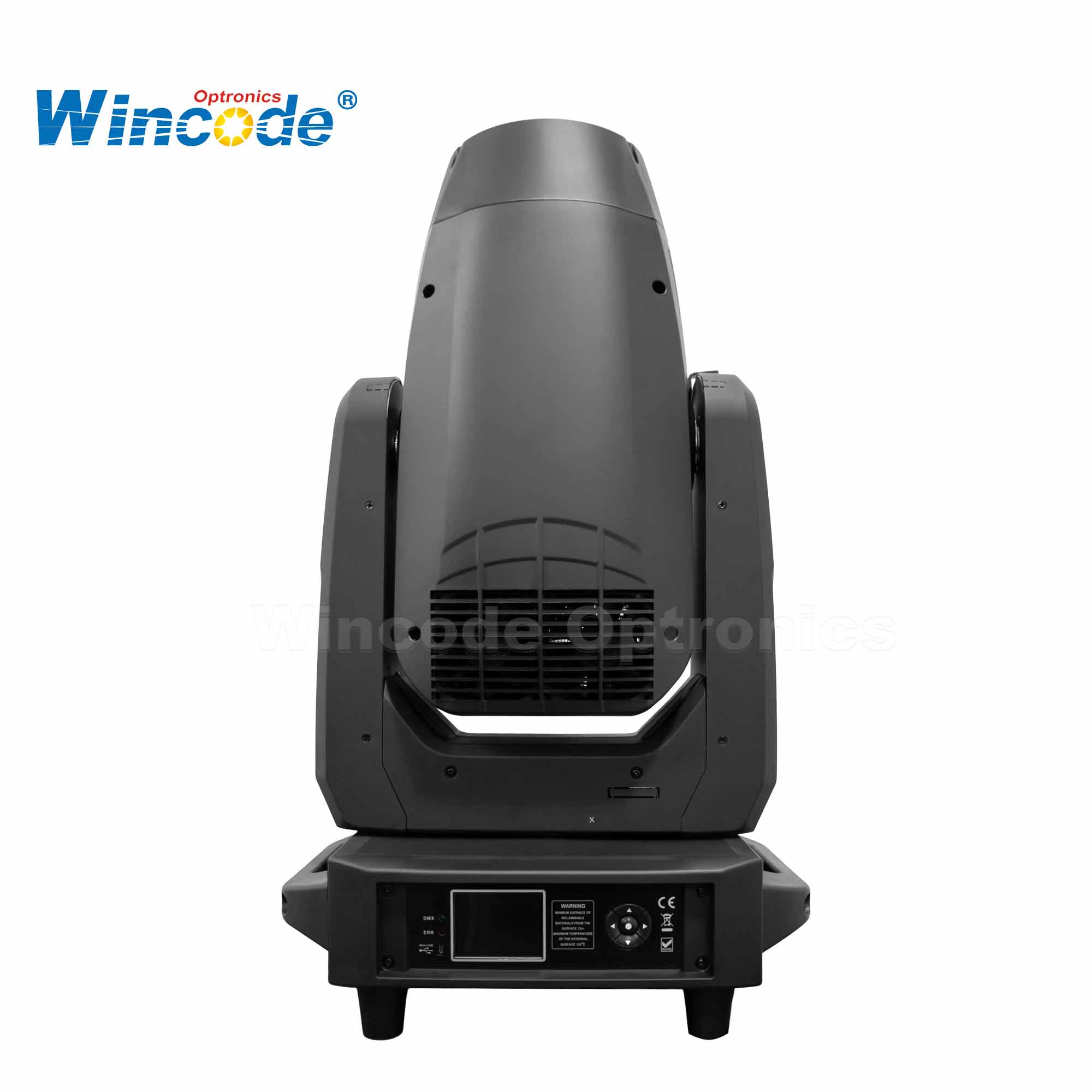

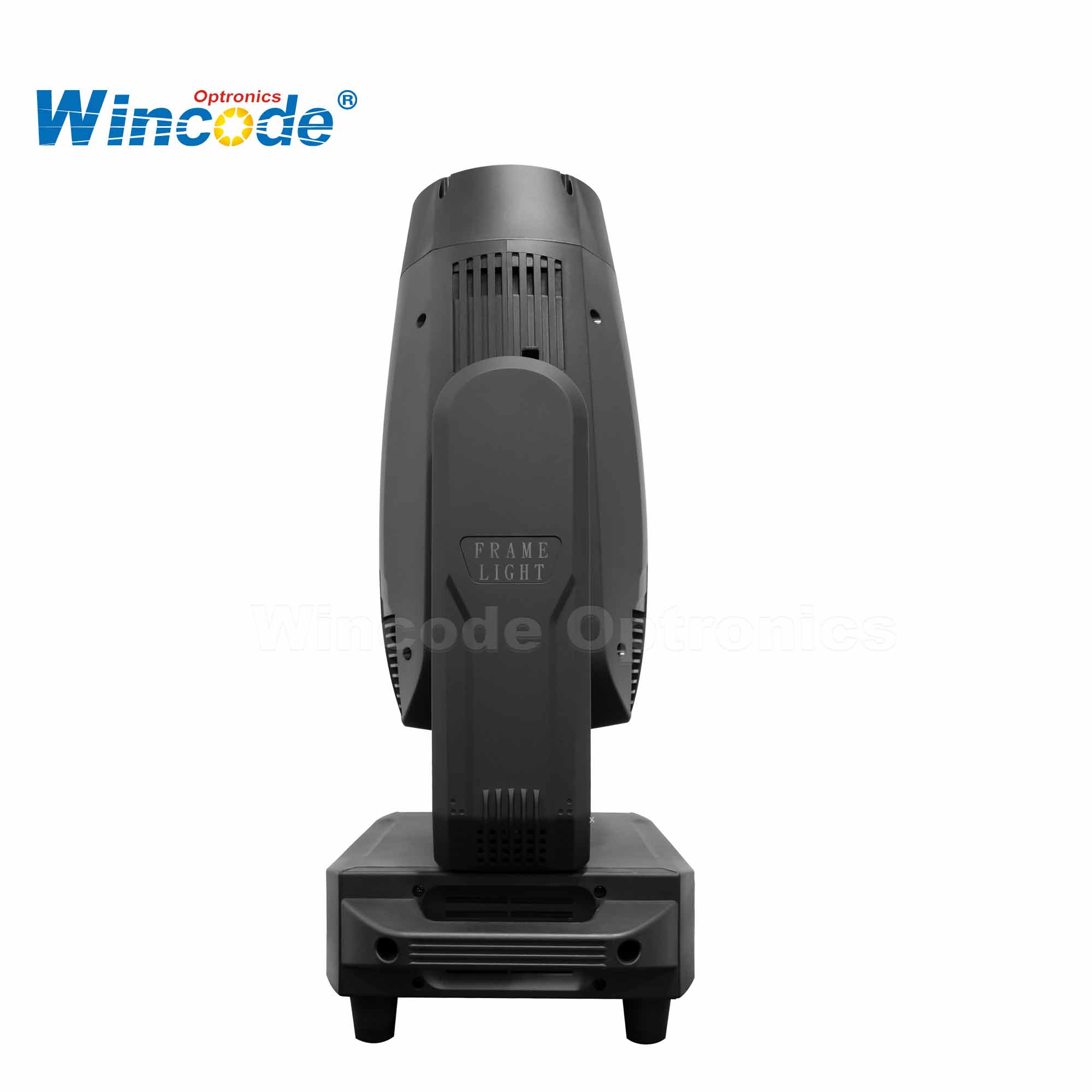

MiniFramer 600 – 600W LED BSWF 4-in-1 Moving Head Light with CMY, CTO & Framing System
Wincode Optronics presents the MiniFramer 600 (Model: WOP-MF6), a high-performance, compact 600W LED framing moving head light that integrates Beam, Spot, Wash, and Framing functions in one fixture. Powered by a bright 580W LED module with 6500K color temperature, this professional moving head delivers outstanding brightness, precise color control, and creative effects, making it an ideal solution for demanding stage productions, concerts, theaters, and rental applications.
Key Features & Benefits
Powerful LED Engine: 580W LED module with 20,000-hour lifespan and switchable CRI (Ra>70 standard / Ra>90 high CRI mode) for accurate color rendering.
Advanced Color System: Independent CMY color mixing + variable CTO (2500K–6500K) + 5 colors + open color wheel for rich, smooth color effects.
Precise Framing System: 4 independent positionable shutter blades, each individually controllable and rotatable 90°, perfect for sharp profile cuts and creative shaping.
Flexible Optical System: 4°–35° linear zoom, 130mm front lens, triangular prism, 0-100% linear frost, and 6%-100% iris for versatile beam control.
Gobo Effects: 1 fixed gobo wheel (6 gobos + open) + 1 rotating gobo wheel (7 pluggable glass gobos + open) for dynamic pattern projection.
Smooth Movement & Control: Pan 540° / Tilt 270° with fine adjustment and automatic correction; supports DMX512, RDM, Auto, and Master/Slave modes.
Professional Dimming & Effects: 0-100% linear dimming, 0-25Hz strobe with pulse and random effects, 2.8-inch touchscreen LCD with 180° rotation.
Compact & Reliable Design: Only 25.5kg net weight, 667×274×393mm size, IP20 rating, and quiet operation for easy rigging and transport.
Model: WOP-MF6 / MiniFramer 600
Voltage: AC100-240V, 50/60Hz
Rated Power: 750W
Light Source: 580W LED Module
Color Temperature: 6500K
CRI: Ra>70 (Standard) / Ra>90 (High CRI Mode)
Zoom: 4°–35° linear zoom
Pan/Tilt: 540° / 270° with fine adjustment & auto correction
Framing: 4 independent blades, each rotatable 90°
Gobo Wheels: 6 fixed + 7 rotating pluggable glass gobos
Prism: Triangular prism
Control: DMX512 / RDM / Auto / Master-Slave
Display: 2.8-inch Touchscreen LCD (Chinese/English)
Dimensions: 667 × 274 × 393 mm
Net Weight: 25.5 kg
Gross Weight: 27.5 kg
IP Rate: IP20 (Indoor use)
Ideal Applications
Large-scale concerts and tours
Theater and opera productions
TV studios and film sets
Corporate events and galas
Rental companies and lighting designers
Clubs, festivals, and live performances
The Mini 600W LED BSWF Moving Head Light combines compact size with professional-level output and creative control. Its advanced framing system, wide zoom range, and high CRI make it one of the most versatile 600W framing moving heads available today.
