The AquaFramer 700 / AquaFramer Pro1000 series from Wincode Optronics is a professional-grade IP66-rated outdoor moving head fixture, available in two powerful models: the 600W AquaFramer 700 and the high-output 850W AquaFramer Pro1000. Both deliver stunning beam, spot, wash and framing effects with a wide 4.8°-50° linear zoom range. Built with a sealed, rugged casing, these fixtures are fully waterproof and ready for dusty deserts, rainy outdoor venues, festivals, concerts, architectural lighting and open-air clubs worldwide.
| WOP-AF7: | |
|---|---|
| WOP-AF10: | |
| Quantity: | |
WOP-AF7 / WOP-AF10
Wincode Optronics
Wincode Optronics proudly introduces the AquaFramer 700 / AquaFramer Pro1000 series — two rugged, IP66-rated outdoor moving head fixtures engineered for professional stage and outdoor use.
AquaFramer 700: 600W LED module
AquaFramer Pro1000: 850W LED module
Both models feature powerful high-output beams, variable zoom from 4.8° to 50°, a full 4-blade framing system with 90° rotation, independent CMY color mixing, variable CTO (2500K–6500K), 7 rotating glass gobos, a 5-facet rotating prism, and smooth motorized iris.
The sealed, weatherproof design makes them perfect for festivals, concerts, architectural lighting, rental companies and outdoor entertainment spaces.
Powerful LED Engine: 600W / 850W high-brightness LED module with 20,000-hour lifespan and switchable CRI (Ra>70 standard / Ra>90 high CRI mode).

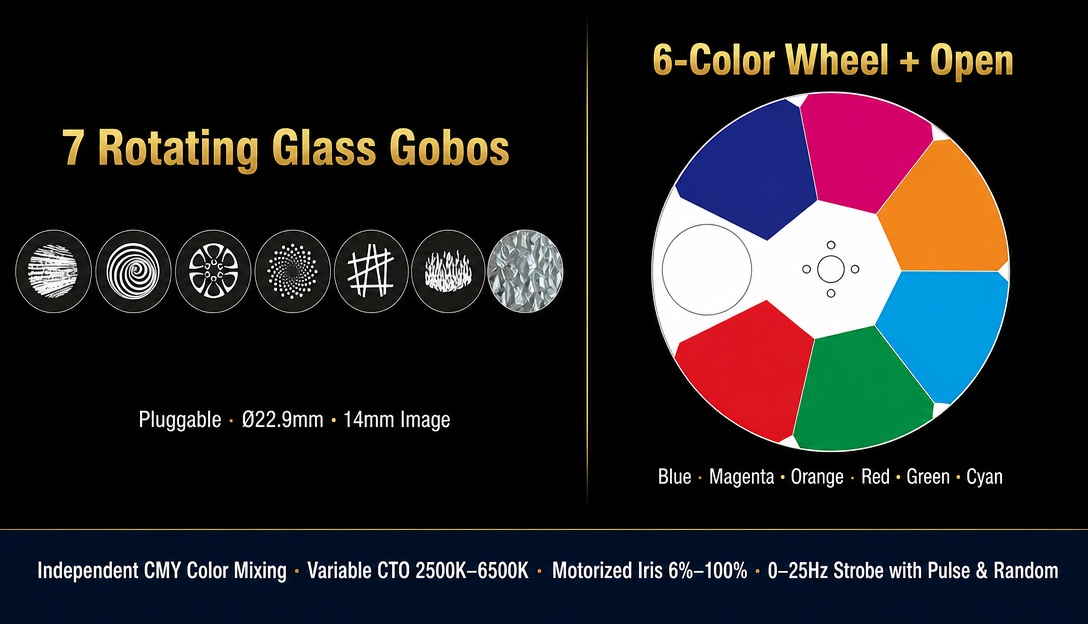

Advanced Color System: Independent CMY color mixing + variable CTO (2500K–6500K) + 6 colors + open for rich, saturated color effects.
Precise Framing System: 4 independent positionable shutter blades, each individually blackout and rotatable 90° for sharp profile cuts and creative shaping.

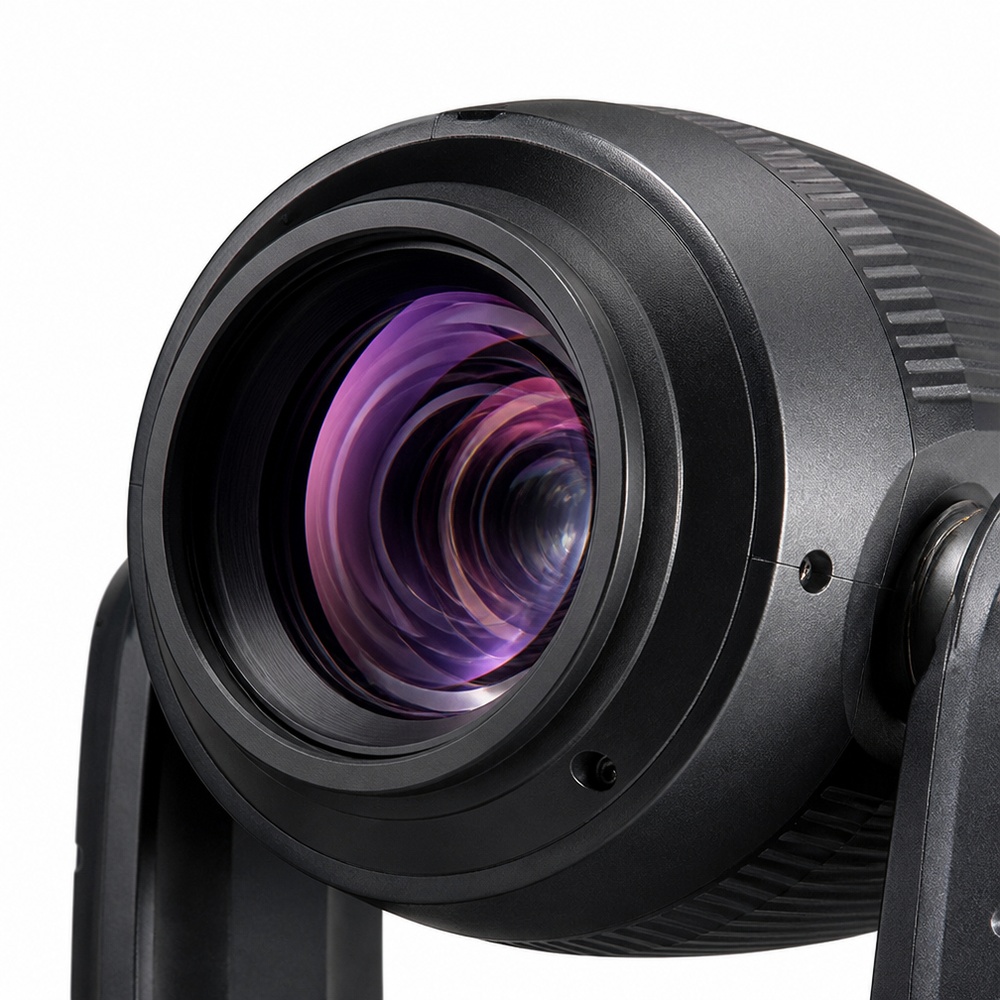

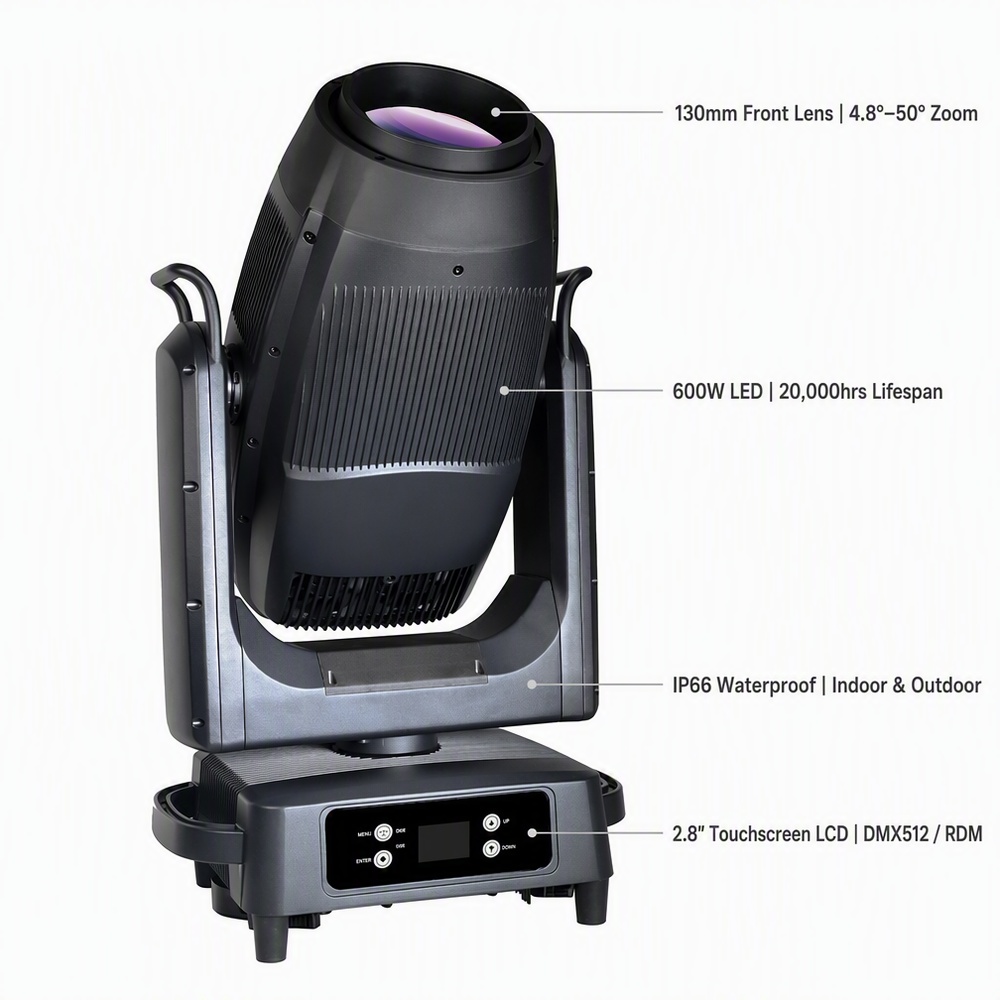

Flexible Optical System: 4.8°–50° linear zoom, 130mm front lens, 5-facet rotatable prism, 0-100% linear frost, motorized iris (6%-100%), and electronic linear focus.
Gobo Effects: 7 pluggable rotating glass gobos (22.9mm diameter, 14mm image, 1.1mm thick).
Smooth Movement: Pan 540° / Tilt 270° with fine adjustment and automatic correction.
Professional Control: 0-100% linear dimming, 0-25Hz strobe with pulse & random modes, 2.8-inch touchscreen LCD with 180° rotation, DMX512/RDM/Auto/Master-Slave.
Built for Outdoor Use: IP66 waterproof rating, 0-45℃ operating temperature, compact sealed housing.

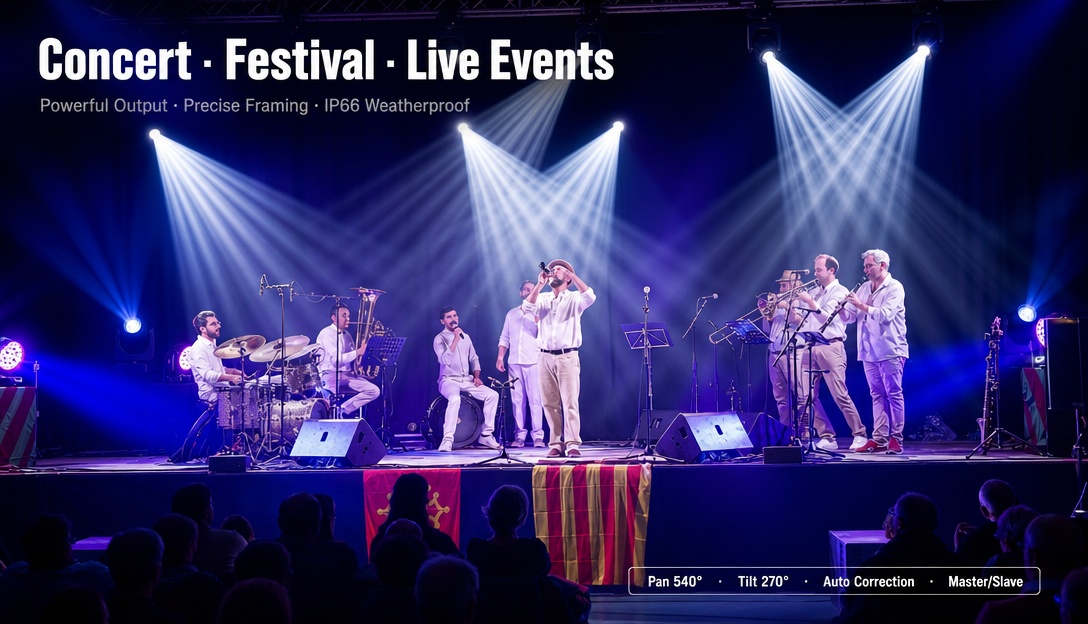

Outdoor festivals & concerts
Architectural facade & building lighting
Open-air clubs & entertainment venues
Theater & stage productions (indoor/outdoor)
Rental companies & touring shows
Public installations & weather-resistant environments

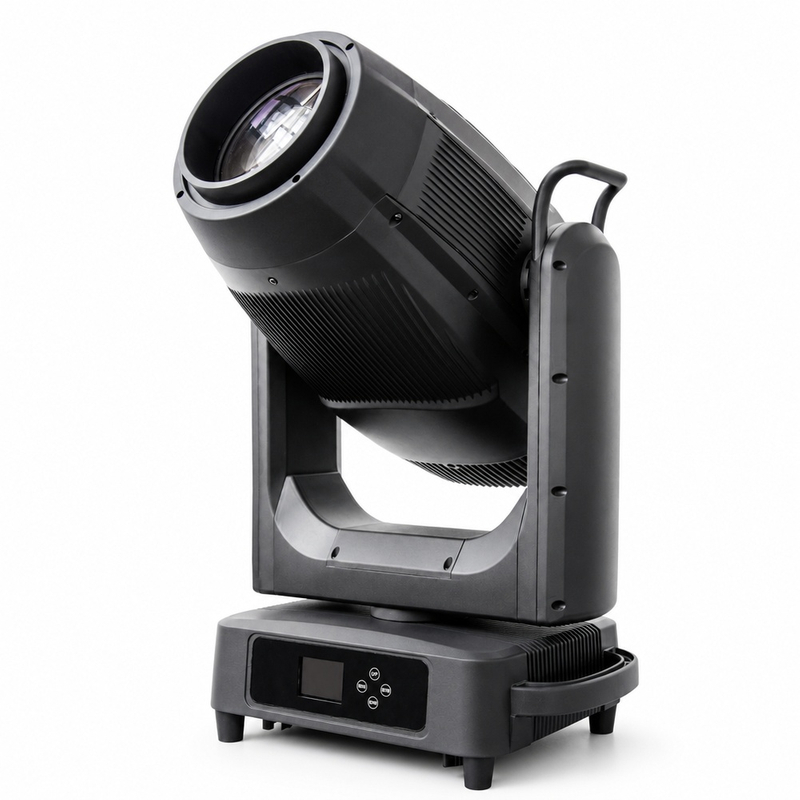

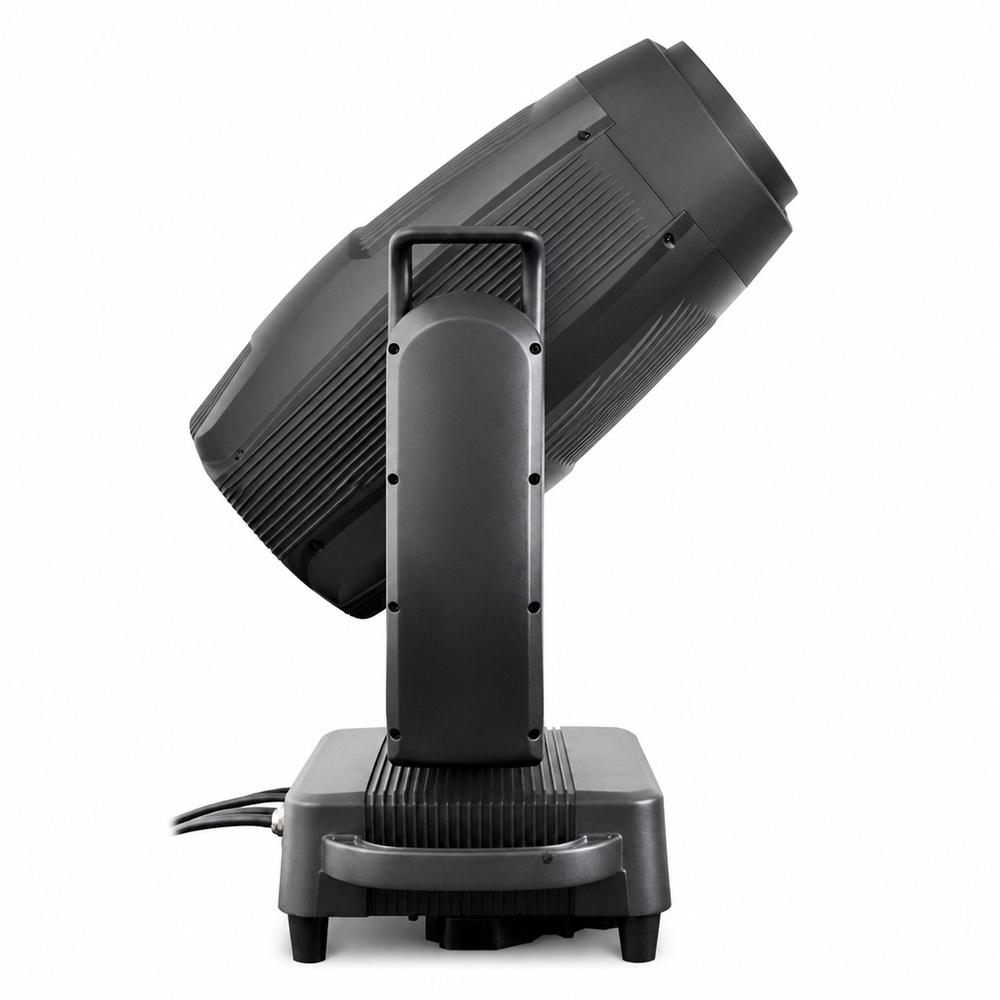

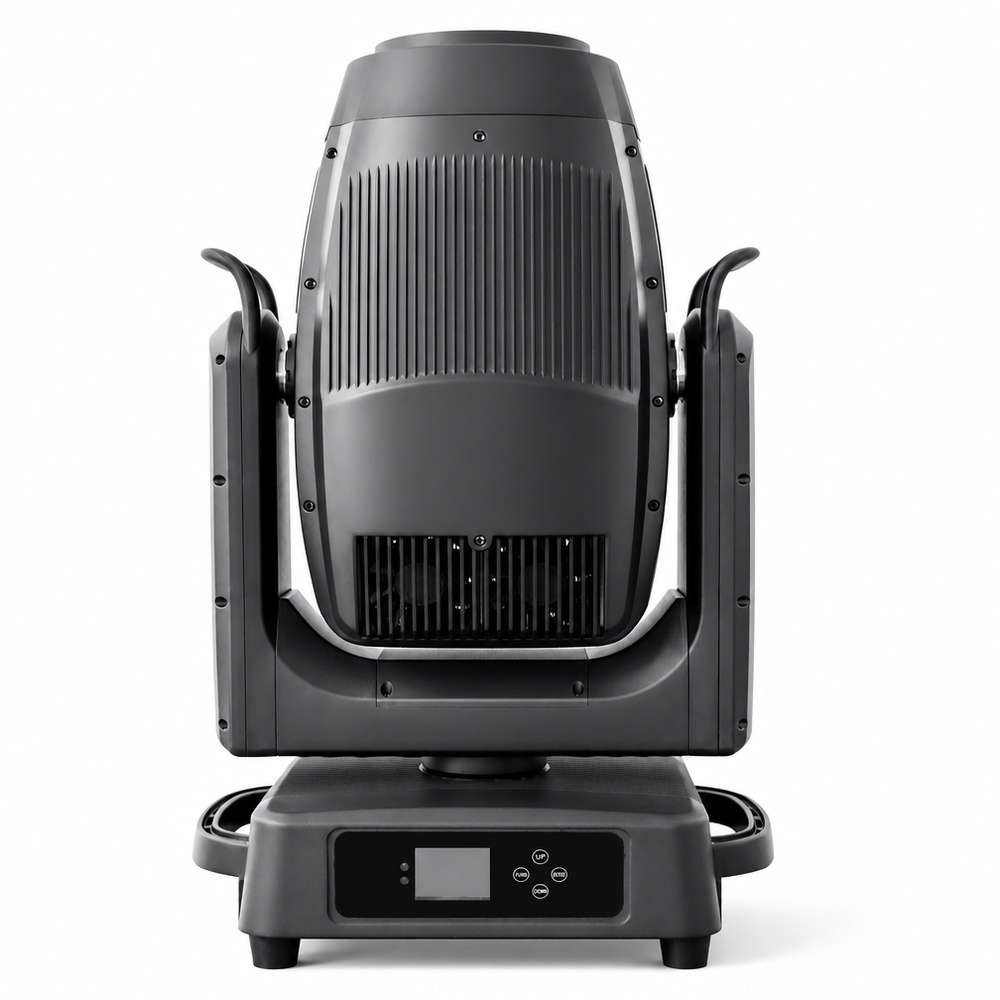

Main Product View – AquaFramer 700 /AquaFramer Pro1000
The AquaFramer 700 / AquaFramer Pro1000 is the ultimate IP66 outdoor moving head — combining professional brightness, creative effects, and rugged reliability in one compact, weatherproof fixture. Perfect for any high-demand outdoor or indoor lighting project.
Model: WOP-AF7 (700) / WOP-AF10 (Pro1000)
Voltage: AC100-240V, 50/60Hz
Rated Power: 800W / 1200W
Light Source: 600W / 850W LED Module
Color Temperature: 6500K
CRI: Ra>70 (Standard) / Ra>90 (High CRI Mode)
Zoom: 4.8°–50° linear zoom
Pan/Tilt: 540° / 270° with fine adjustment & auto correction
Framing: 4 independent blades, rotatable 90°
Gobo Wheel: 7 pluggable rotating glass gobos
Prism: 5-facet rotating prism
Control: DMX512 / RDM / Auto / Master-Slave
Display: 2.8-inch Touchscreen LCD (Chinese/English)

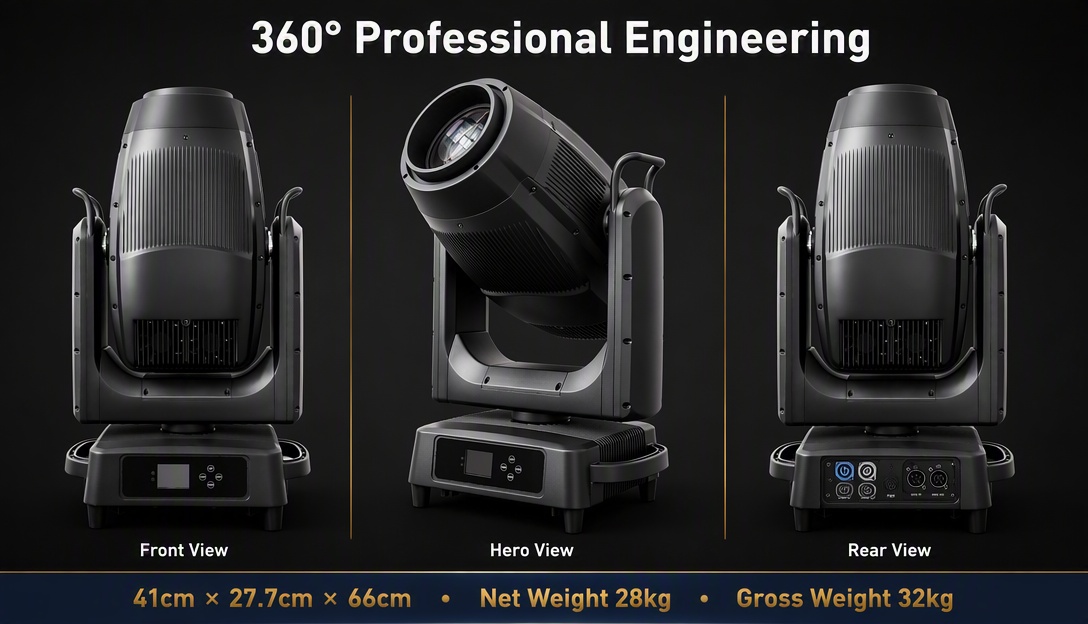

Dimensions: 41cm × 27.7cm × 66cm
Net Weight: 28kg
Gross Weight: 32kg
IP Rate: IP66 (Outdoor & Indoor Use)
Standard export carton packing or Flight case
Chargeable Flight case ( For Wireless Battery LED Lights )
3-20 days after confirming order,detail delivery date should be decided according to
production season, order quantity and shipping methods.
1. We will provide more precisely and efficiently manufacture and serve according to clients' drawings.
2. We have professional QC team to ensure your product much better.
3. Check the raw material before starting production.
4. Have the random inspection during the processing.
5. Make the 100% inspection before the shipments.
Guangzhou Wincode Optronics Co., Limited is a professional OEM,ODM,OBM manufacturer and exporter which specialized in manufacturing and marketing variety stage lights, PRO Lights, Architectural Lights, Commercial Lights. With much experiences and strict ISO9001 international standards. We are running our own brand "Wincode Optronics" in the global market for lighting. Our products are suitable for various entertainment and recreation place, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and so on.
Q1. How is your product quality?
Our products are made complying to CE/RoHS/UL standards, and tested for 48hrs before shipping ensuring items function well.
Q2. Why your pricing is higher than many other factories?
There’s no lowest price in the market.Pricing in WINCODE OPTRONICS is quite middle level, to ensure our requirements on quality and service, while be responsible for customers.
Q3. How to order lighting items from you?
You can contact our sells personnel to confirm what you need. You will be receiving a proforma invoice to confirm order and pay.
Q4. What payment modes are available?
T/T, Western Uion, Paypal , Money Gram are acceptable.
Q5. What’s the lead time for my order?
Usually for sample order, it takes roughly 5-7 business days.
While official mass order will take 15 to 20 business days to ship.
