WOP-LM1012B
Wincode Optronics

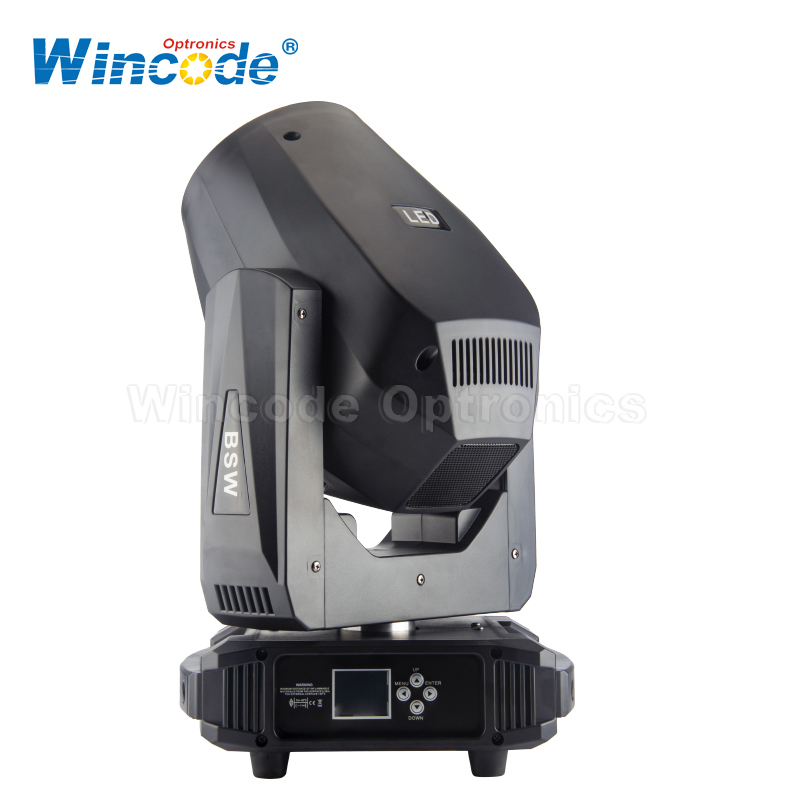

1）WOP-LM1012B 250W LED Beam Spot Wash 3 in 1 Moving Head Light combines Beam, Spot, Wash, Zoom and it has been specifically engineered to be not only a high quality bright light but also silent. More than 50,000 hours life time, no need to replace the light source frequently. Great heat dissipation design supplemented by intelligent fan control technology, quieter than the discharge-lamp, the lower the ambient temperature, the lower the noise; the LED is power-off when blackout, different from discharge-lamp through shutters, energy-saving and environmental protection. 6°-26° zoom, strong beam; fast-running framing system. Its color wheel system delivers beautiful pastels, stunning saturated colours, powerful primaries, one colour wheel provides 7 colours, 7 static gobos, 6 rotated Gobos, , 3-prism and frost.
2）The product is suitable for high-end venues such as TV stations, theaters, stages, concerts, large-scale evening parties, auto shows, etc., especially suitable for venues with high noise requirements such as theaters and concert halls. Making all skin tones and colours come to life on stage or in front of a camera.
| Voltage: | AC100~240V,50/60Hz |
| Max Power Consumption: | 320W |
| Light source: | 250W High Output White LED |
| Lamp life: | 50000 hours |
| Color temperature: | 7500k-8500k |
| Beam angle: | 6 ° -26 ° |
| Pan movement: | Max 540°, with pan fine |
| Tilt movement: | Max 270°, with tilt fine |
| Pan/Tilt: | Automatic Correction |
| Color Wheel: | 7colors + open, with rainbow effect |
| Static Gobo Wheel: | 7 gobos + open, with rotation and running water effect |
| Rotation gobo wheel: | 6 gobos+open |
| Prism: | 3 facet prism with bi-direction rotating |
| Frost: | With frost effect |
| Focus: | motorized focus |
| Strobe: | 1-25 Hz with pulse effect |
| Dimmer: | 0-100% linear dimmer(16bit) |
| Control mode: | DMX512, master-slave operation, sound control |
| Channel mode: | 17CH/ 20CH Support RDM function, DMX software upgrade function |
Optional network function support: | artnet, klingnet, sacn, network protocol |
| Display: | color LCD, Chinese and English display, reverse display |
| Working environment temperature: | 0 ° C-45 ° C |
| Product size: | 296 ×224 × 492 mm |
| Package size: | 420×400×530 mm |
| Net weight: | 12kg |
Standard export carton packing or Flight case
Chargeable Flight case ( For Wireless Battery LED Lights )
3-20 days after confirming order,detail delivery date should be decided according to
production season, order quantity and shipping methods.
1. We will provide more precisely and efficiently manufacture and serve according to clients' drawings.
2. We have professional QC team to ensure your product much better.
3. Check the raw material before starting production.
4. Have the random inspection during the processing.
5. Make the 100% inspection before the shipments.
Guangzhou Wincode Optronics Co., Limited is a professional OEM,ODM,OBM manufacturer and exporter which specialized in manufacturing and marketing variety stage lights, PRO Lights, Architectural Lights, Commercial Lights. With much experiences and strict ISO9001 international standards. We are running our own brand "Wincode Optronics" in the global market for lighting. Our products are suitable for various entertainment and recreation place, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and so on.
Q1. How is your product quality?
Our products are made complying to CE/RoHS/UL standards, and tested for 48hrs before shipping ensuring items function well.
Q2. Why your pricing is higher than many other factories?
There’s no lowest price in the market.Pricing in WINCODE OPTRONICS is quite middle level, to ensure our requirements on quality and service, while be responsible for customers.
Q3. How to order lighting items from you?
You can contact our sells personnel to confirm what you need. You will be receiving a proforma invoice to confirm order and pay.
Q4. What payment modes are available?
T/T, Western Uion, Paypal , Money Gram are acceptable.
Q5. What’s the lead time for my order?
Usually for sample order, it takes roughly 5-7 business days.
While official mass order will take 15 to 20 business days to ship.
