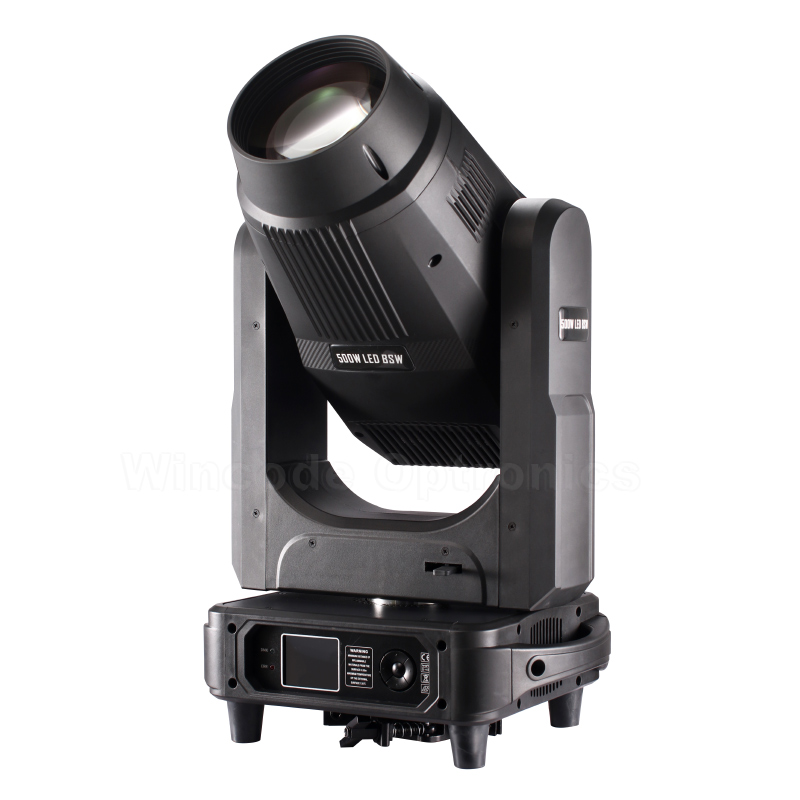

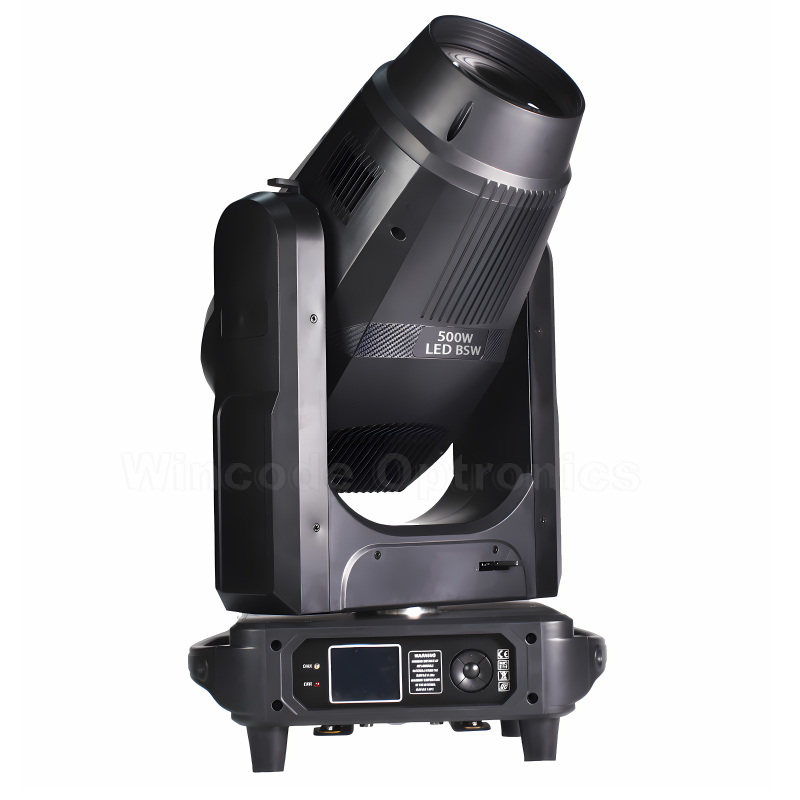

500W BSW LED Moving Head Light With Zoom CMY CTO

1. 500W LED Engine
2. Zoom angle: 3.5-50°
3. Linear CMY+CTO
3. Fixed Gobos: 11
4. Rotated Gobos: 7
5. 6+8 facet prism
6. RDM
  • WOP-LM500BSW

  • Wincode Optronics

Input voltage: AC110V-240V/50-60HZ

Light source specification: led 500W

Light source life: 20000 hours

Rated power: 600W

Channel mode: 23 channels

Pan: 540°(16 bit precision scanning)

Tilt: 270°(16 bit precision scanning)

Dimming system: 0-100% linear adjustment

Focusing system: linear adjustment from 4 meters to 50 meters

Frost system: 1 independent frost effect, soft and natural light spot

Zoom angle: 3.5-50°

High-speed strobe: 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function

Color: 8 colors + white light. Color half-color function

Color mixing system: linear CMY+CTO color mixing system.

Fixed gobo wheel: 11 fixed patterns + white light

Rotating gobo wheel: 7 glass patterns, each glass pattern can be independently forward and reverse

Prism: standard 6 facet prism and 8 facet prism, each prism can be independently forward and reverse

Macro function: console reset function, self-propelled mode, master-slave mode

Display mode: LCD display, key + touch dual operation mode

Control signal: International standard DMX512. With RDM function, online software upgrade is available, dial address code

Safety device: with electronic temperature control overheating protection, electronic temperature control automatic power-off protection when the overheating system fails

Product appearance: flame retardant, high temperature resistance

Working environment: -20 degrees - 40 degrees

Protection level: IP20

Product net weight: 22.5KG

Product size: 380*269*654mm (L*W*H)
