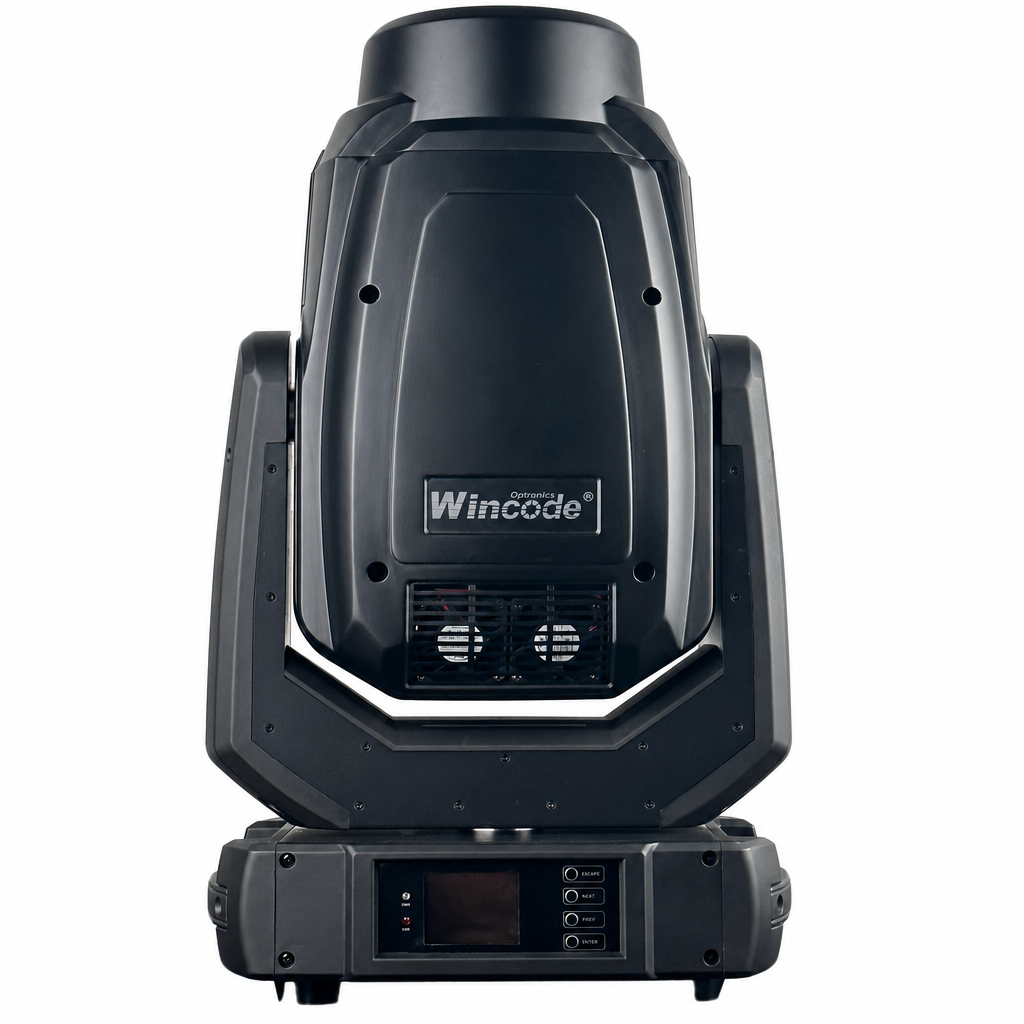

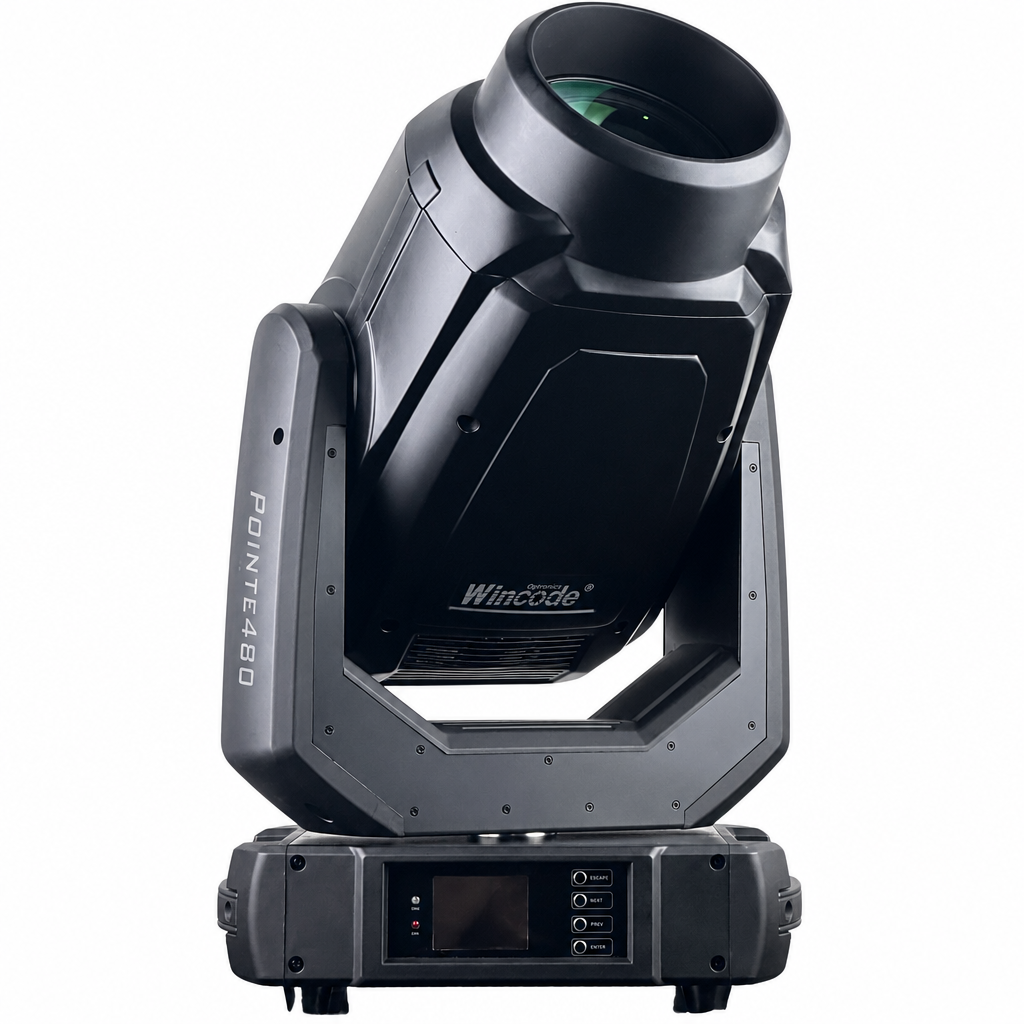

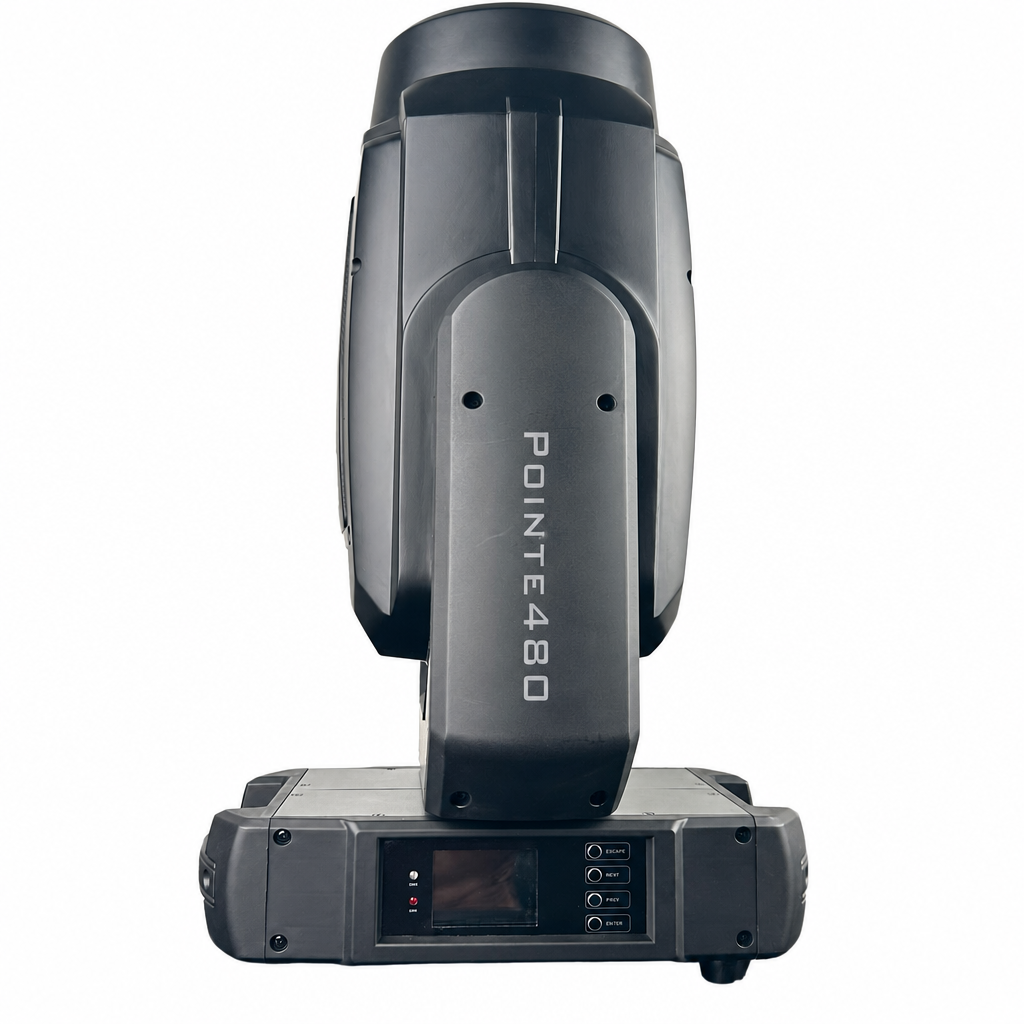

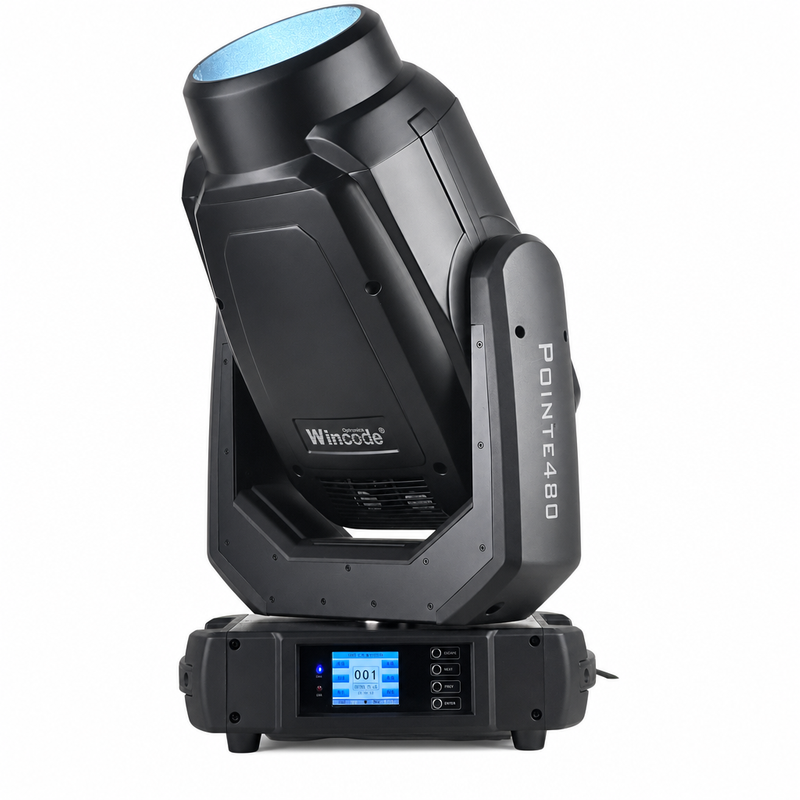

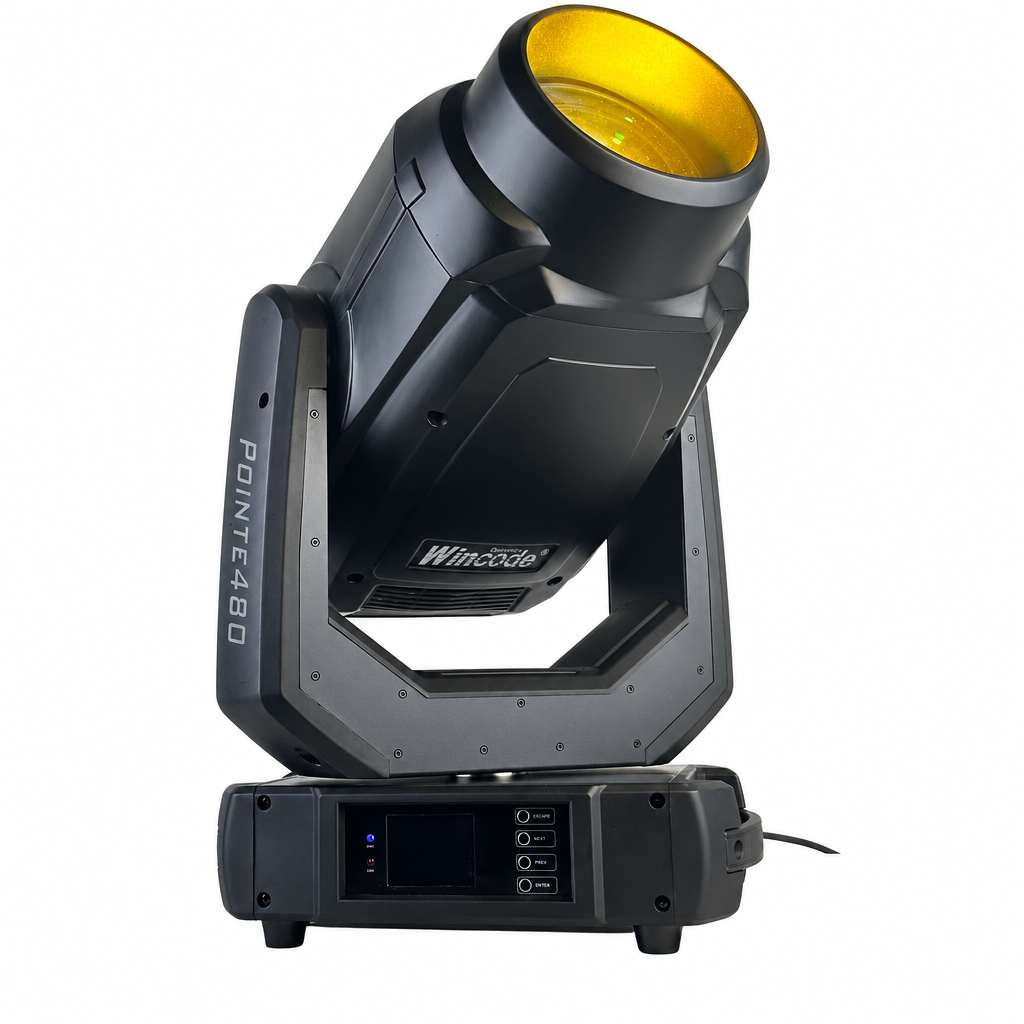

The Wincode ApexPointe 420 (Model: WOP-ApexPointe 420) is a professional 3-in-1 Beam Spot Wash hybrid moving head powered by a high-output 420W white LED. With a wide motorized zoom range of 3.2°–42.6°, advanced CMY linear color mixing, linear CTO (2700K–9000K), dual prism wheels, and dual gobo wheels, it delivers sharp beams, vivid colors, and versatile effects. Designed as a brighter, more affordable alternative to the Robe LED Pointe, it is ideal for theatres, concerts, TV studios, clubs, and large-scale productions.
| Quantity: | |
|---|---|
ApexPointe 420
Wincode Optronics
The Wincode ApexPointe 420 (WOP-ApexPointe 420) is a high-performance 3-in-1 Beam Spot Wash hybrid moving head fixture. Equipped with a powerful 420W high-power white LED (20,000-hour lifespan), it produces an intense, sharp beam with a wide motorized zoom range from 3.2° to 42.6°.
As an upgraded and more affordable alternative to the Robe LED Pointe, the ApexPointe 420 offers higher brightness while remaining fully compatible with the original fixture library. Its robust construction and efficient cooling system ensure reliable performance for demanding stage and event applications.
Powerful LED Engine: 420W high-power white LED with 20,000-hour lifespan and color temperature of 8500K–9000K
Wide Zoom Range: 3.2°–42.6° linear motorized zoom for precise beam control

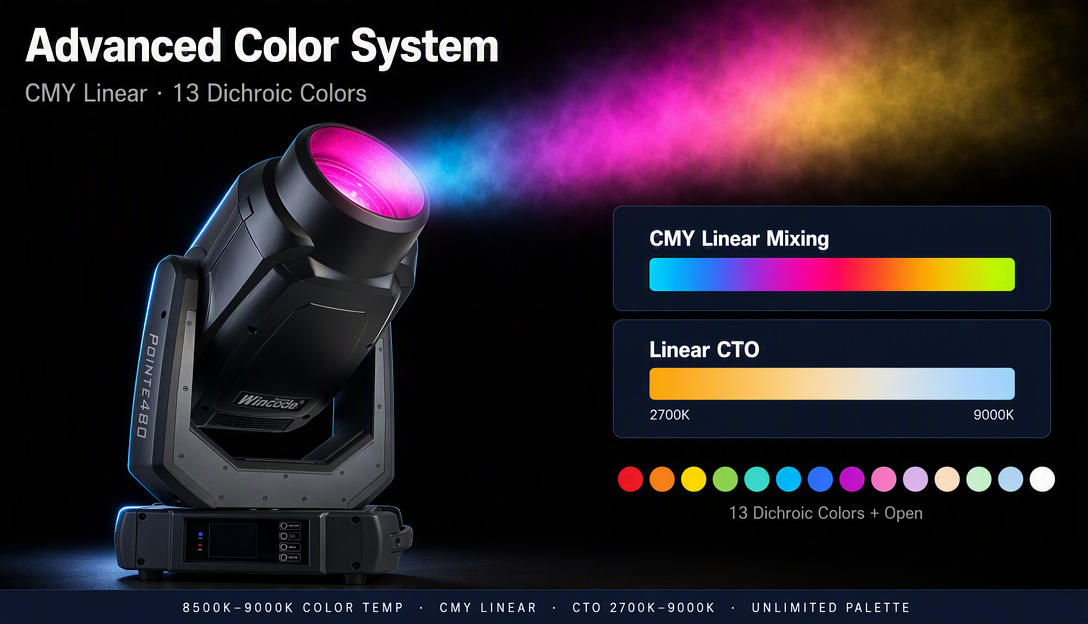

Advanced Color System: 13 dichroic colors + open, independent CMY linear color mixing, and linear CTO (2700K–9000K)

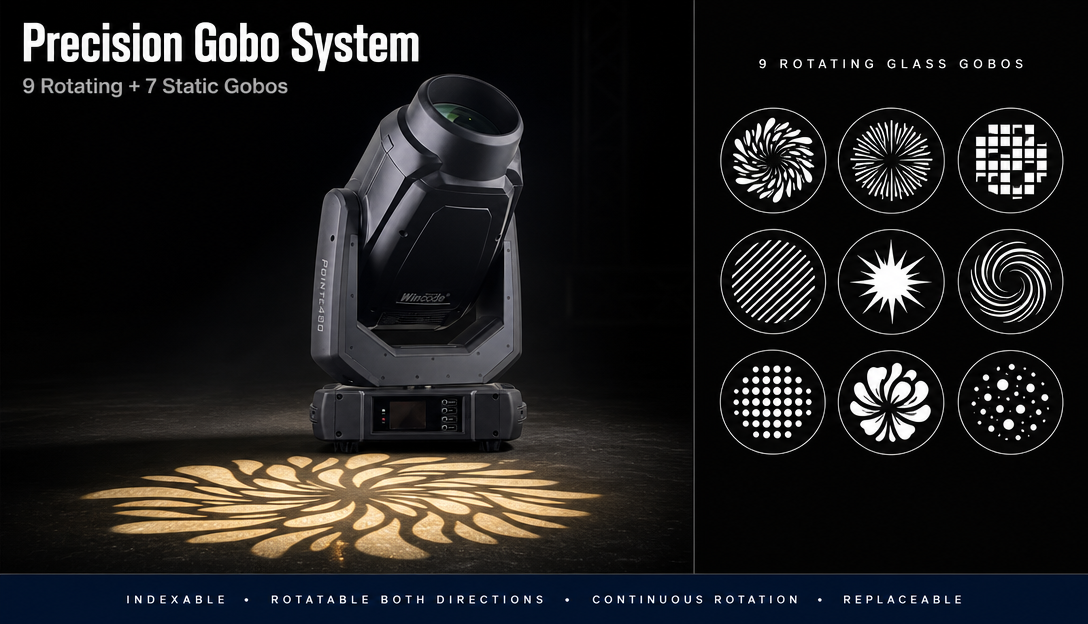

Dual Gobo Wheels: 7 metal static gobos + 4 beam reducers; 9 indexable & rotatable glass gobos with continuous rotation
Dual Prism System: Two prism wheels featuring 6+12 facet circular, 6-facet linear, multicoloured linear, and 8-facet 12° circular prisms – all rotatable in both directions
Double Linear Frost: Smooth frost effects for wash applications
Precise Movement: 540° pan (16-bit, continuous rotation available) and 270° tilt (16-bit) with automatic position correction, electronic motion stabilizer, and remotely controllable speed
Professional Control: 0–100% smooth linear dimming, 1–25Hz strobe with pulse effect, motorized focus, 39 DMX channels, Master/Slave, Auto, and Sound Activated modes
User-Friendly Display: Color LCD display for easy operation
| Item | Specification |
|---|---|
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 600W |
| Light Source | 420W High Power White LED |
| Color Temperature | 8500K–9000K |
| LED Lifespan | 20,000 hours |
| Zoom Range | 3.2° – 42.6° Linear Zoom |
| Pan Movement | 540° (16-bit), Continuous Rotation Available |
| Tilt Movement | 270° (16-bit) |
| Pan/Tilt Features | Automatic Position Correction, Electronic Motion Stabilizer, Remote Speed Control |
| Color System | 13 Dichroic Colors + Open, CMY Linear Mixing, Linear CTO (2700K–9000K) |
| Static Gobo Wheel | 7 Metal Gobos + 4 Beam Reducers |
| Rotating Gobo Wheel | 9 Glass Gobos, Indexable & Rotatable both directions, Continuous Rotation |
| Prism System | Dual prism wheels with multiple circular and linear prisms (all bi-directional) |
| Frost | Double Linear Frost Effect |
| Dimmer | 0-100% Smooth Linear Dimming |
| Strobe | 1-25Hz with Pulse Effect |
| Focus | Motorized Focus |
| Control Modes | DMX512, Master/Slave, Auto, Sound Activated |
| DMX Channels | 39 Channels |
| Display | Color LCD Display |
| Dimensions | 386 × 234 × 673 mm |
| Net Weight | 21.5 kg |
Indoor theatres and concert stages
Television studios and broadcast productions
Nightclubs and entertainment venues
Large-scale events and touring shows
Professional lighting rental companies
The Wincode ApexPointe 420 delivers professional-grade performance, higher brightness, and excellent value as a modern alternative to the Robe LED Pointe. Compact, reliable, and feature-rich — the ideal choice for demanding lighting designers and rental companies.
Standard export carton packing or Flight case
Chargeable Flight case ( For Wireless Battery LED Lights )
3-20 days after confirming order,detail delivery date should be decided according to
production season, order quantity and shipping methods.
1. We will provide more precisely and efficiently manufacture and serve according to clients' drawings.
2. We have professional QC team to ensure your product much better.
3. Check the raw material before starting production.
4. Have the random inspection during the processing.
5. Make the 100% inspection before the shipments.
Guangzhou Wincode Optronics Co., Limited is a professional OEM,ODM,OBM manufacturer and exporter which specialized in manufacturing and marketing variety stage lights, PRO Lights, Architectural Lights, Commercial Lights. With much experiences and strict ISO9001 international standards. We are running our own brand "Wincode Optronics" in the global market for lighting. Our products are suitable for various entertainment and recreation place, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and so on.
Q1. How is your product quality?
Our products are made complying to CE/RoHS/UL standards, and tested for 48hrs before shipping ensuring items function well.
Q2. Why your pricing is higher than many other factories?
There’s no lowest price in the market.Pricing in WINCODE OPTRONICS is quite middle level, to ensure our requirements on quality and service, while be responsible for customers.
Q3. How to order lighting items from you?
You can contact our sells personnel to confirm what you need. You will be receiving a proforma invoice to confirm order and pay.
Q4. What payment modes are available?
T/T, Western Uion, Paypal , Money Gram are acceptable.
Q5. What’s the lead time for my order?
Usually for sample order, it takes roughly 5-7 business days.
While official mass order will take 15 to 20 business days to ship.
