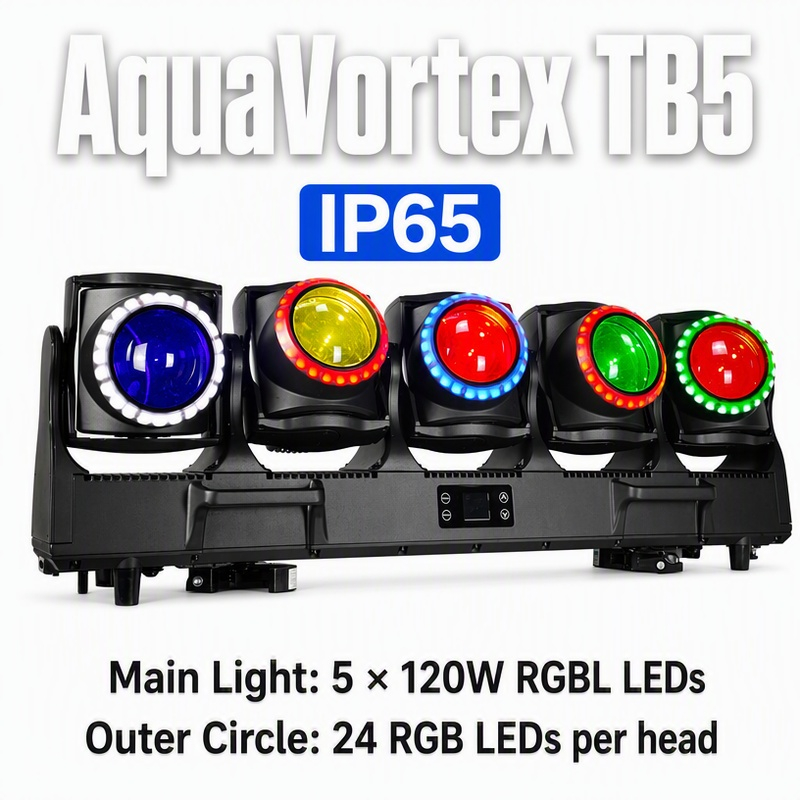

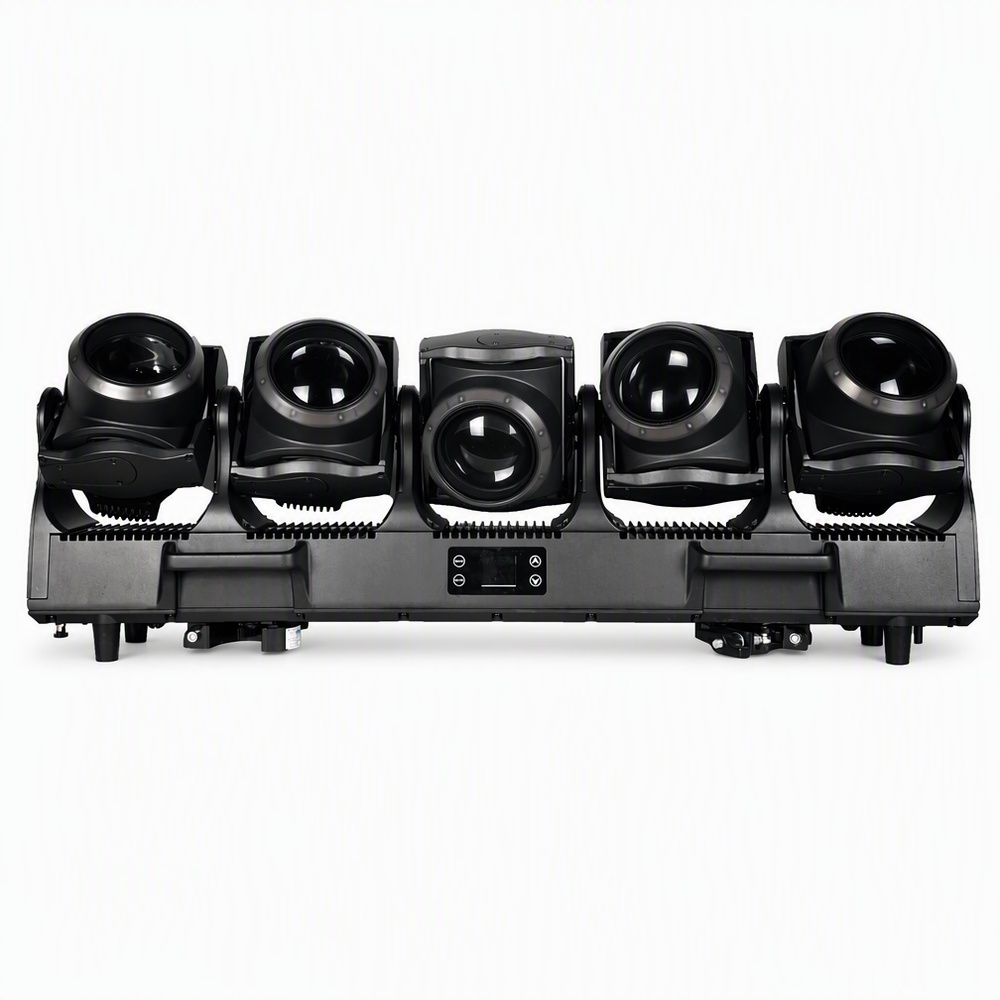

The Wincode AquaVortex TB5 (Model: WOP-AVortex TB5) is a high-performance IP65 multi-head LED moving light designed as a powerful and cost-effective alternative to the ACME TORNADO. Equipped with five independent 120W RGBL high-brightness LED heads and individual outer RGB LED rings, it delivers dynamic, eye-catching visual effects with precise pixel control. Fully waterproof and dustproof, the AquaVortex TB5 is ideal for outdoor concerts, festivals, stadiums, architectural lighting, and large-scale events.
| Quantity: | |
|---|---|
WOP-AVortex TB5
Wincode Optronics

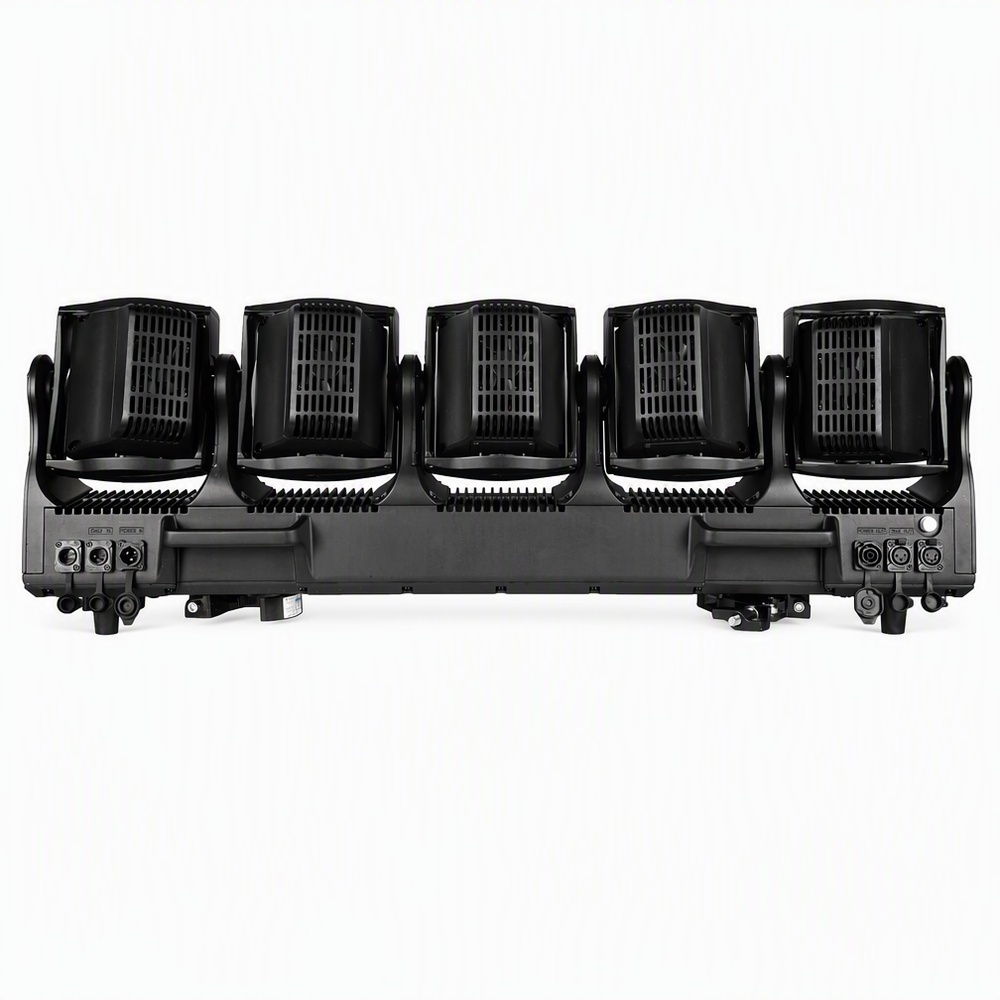

Wincode AquaVortex TB5 IP65 Multi-Head LED Moving Light – Powerful Outdoor Effect Fixture
Overview

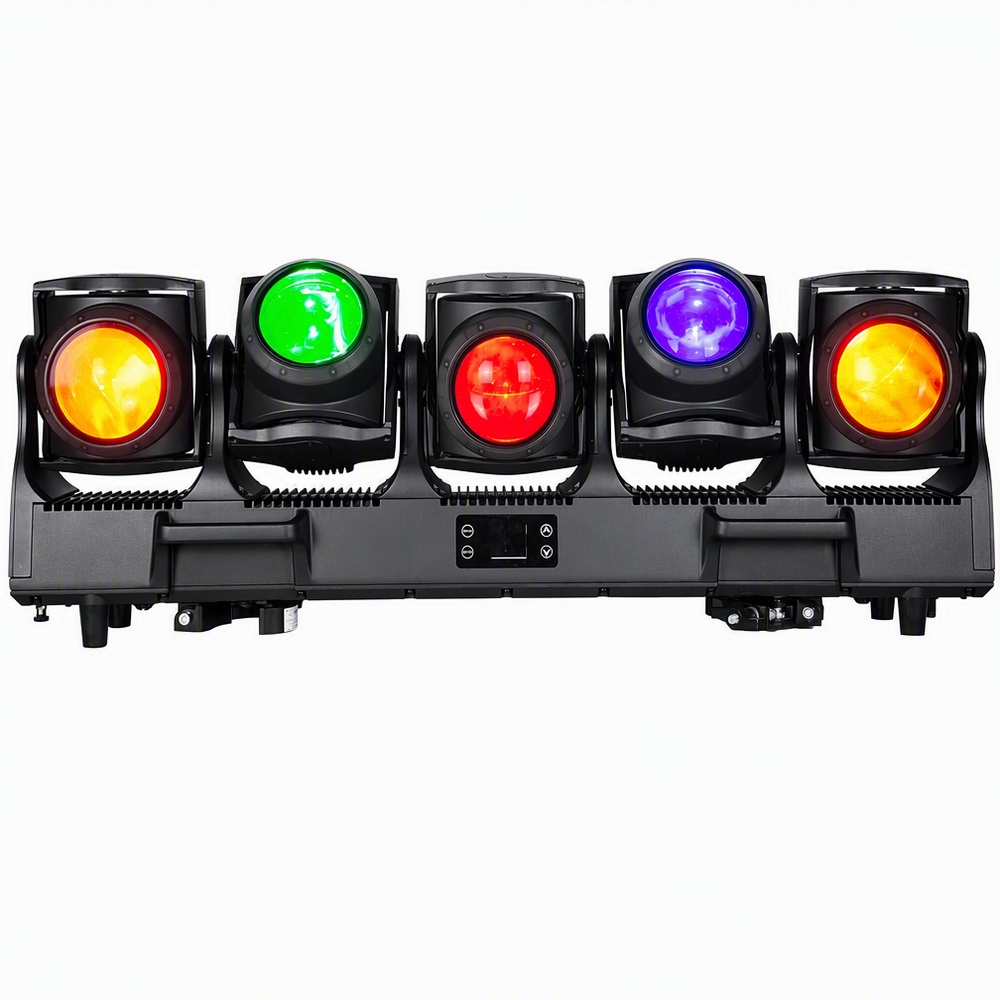

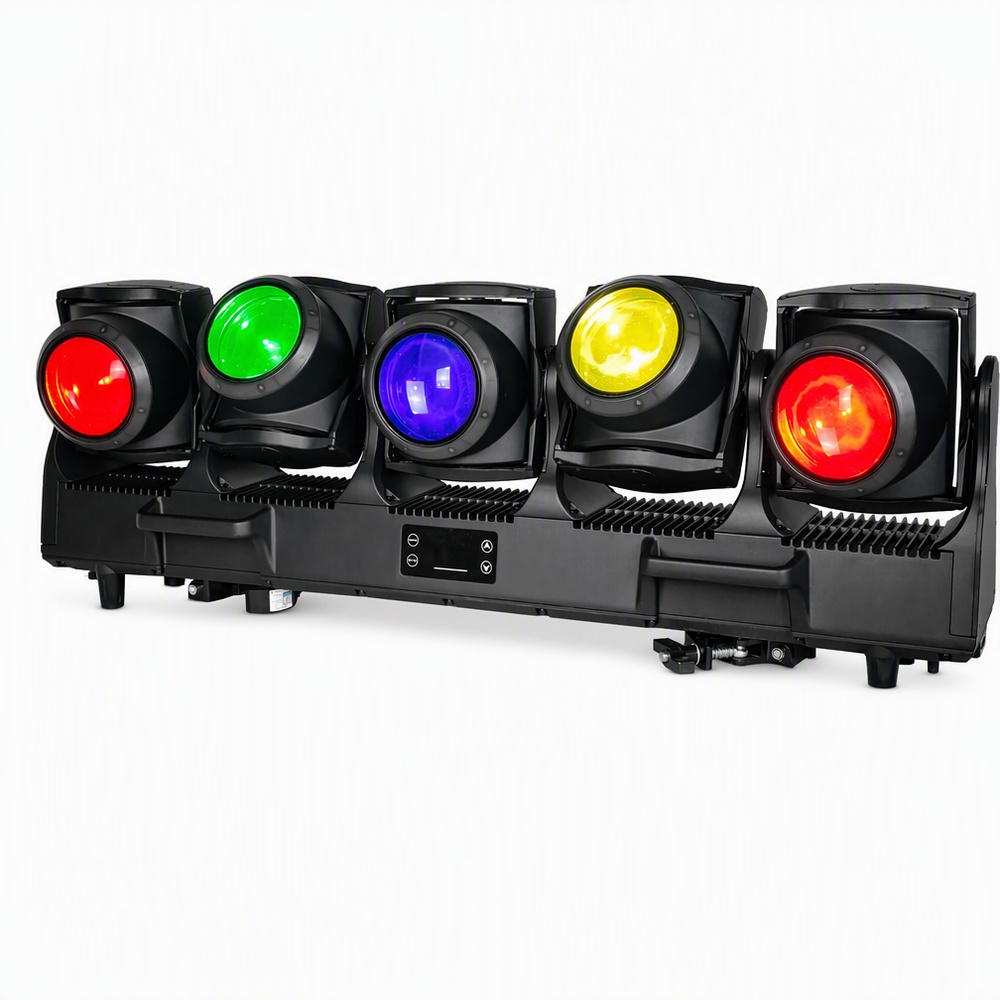

The Wincode AquaVortex TB5 (WOP-AVortex TB5) is a professional multi-head LED moving light engineered for high-impact outdoor and indoor productions. Featuring five independent 120W RGBL high-brightness LED heads and individual outer RGB LED rings (24 RGB LEDs per head), this fixture creates stunning, tornado-like visual effects with powerful output and precise control.
With a robust IP65 waterproof and dustproof rating, the AquaVortex TB5 performs reliably in all weather conditions. It is an excellent, more affordable alternative to the ACME TORNADO, offering comparable performance with outstanding cost efficiency.

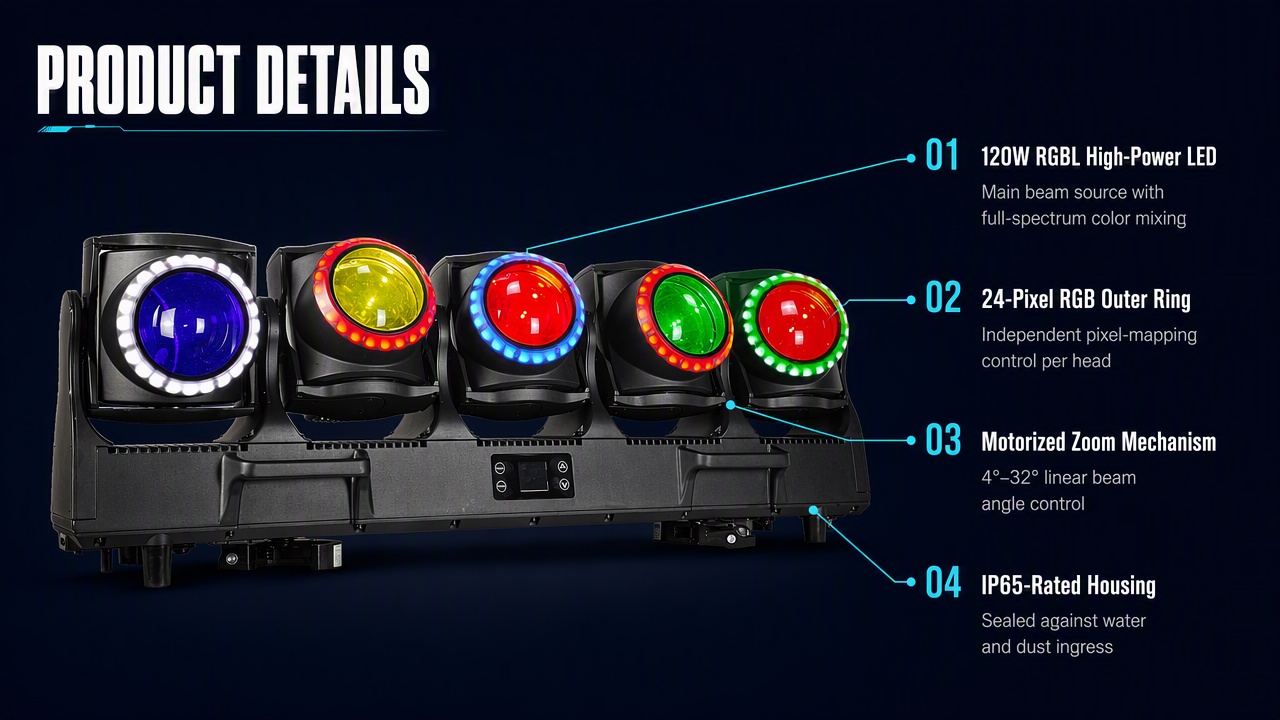

5 Individually Controllable Heads: Each head powered by a 120W RGBL LED for high brightness and rich color mixing
Independent Pixel Rings: 120 × 0.5W RGB LEDs (24 per head) with full pixel control for dynamic effects

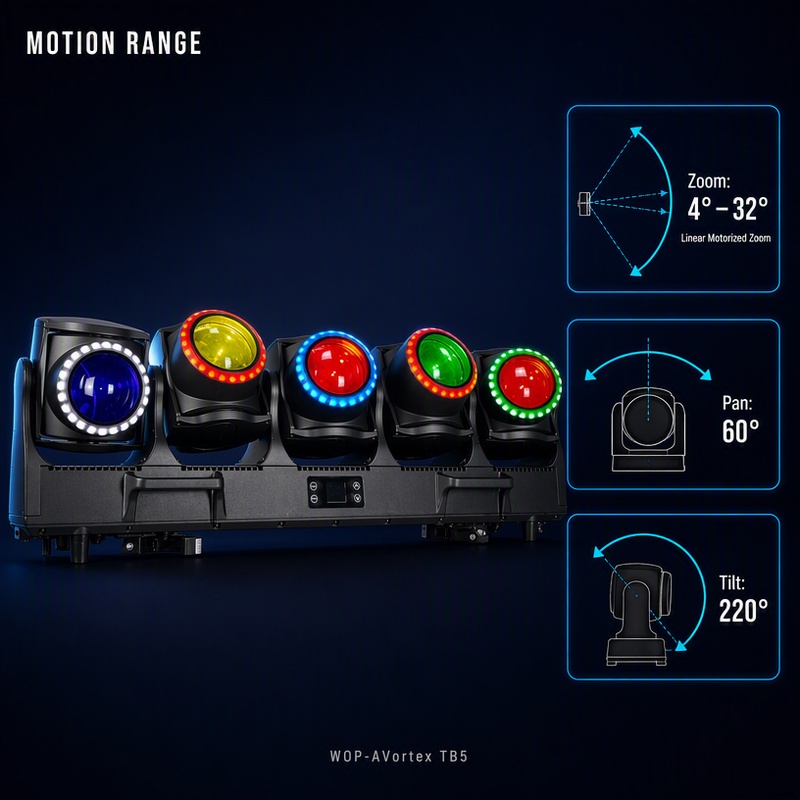

Wide Motorized Zoom: 4°–32° linear zoom for flexible beam coverage

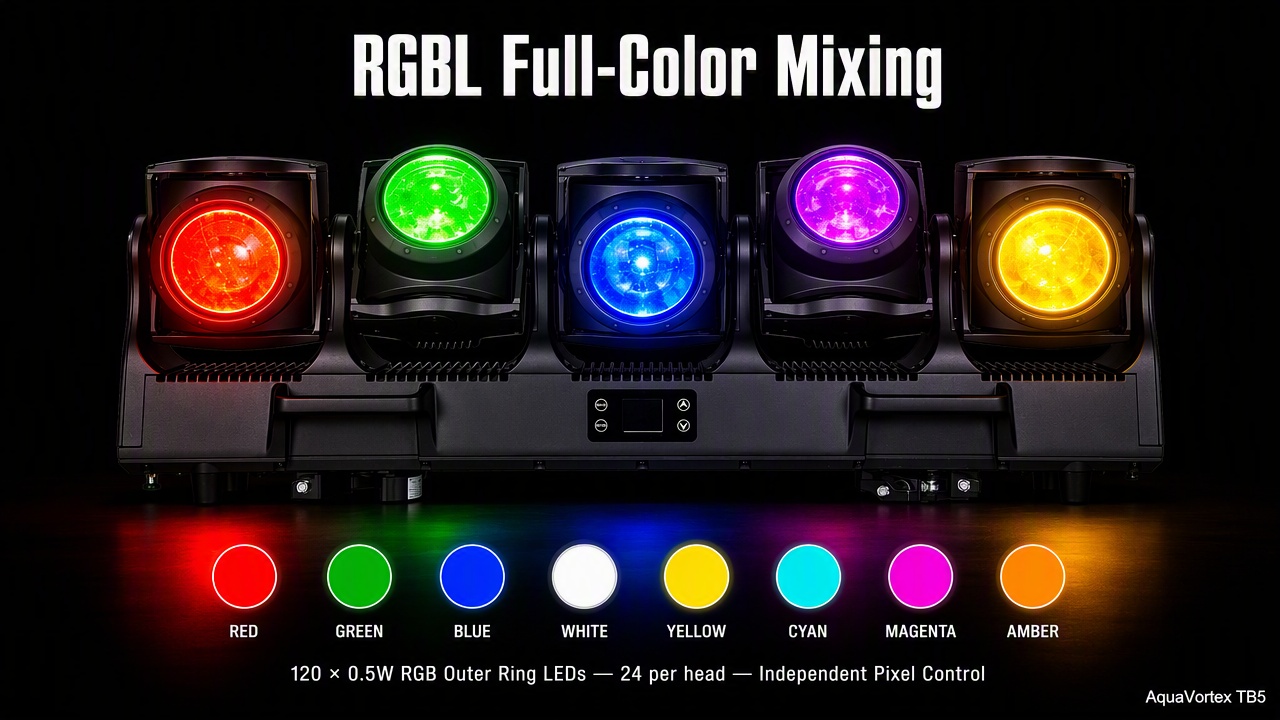

Advanced Color System: Outstanding RGBL color mixing + linear CTO color temperature adjustment
Smooth Dimming & Strobe: 0–100% linear dimming with 4 selectable curves; 1–25 Hz strobe with pulse effect
Flexible Movement: Pan 60° / Tilt 220° for dynamic positioning

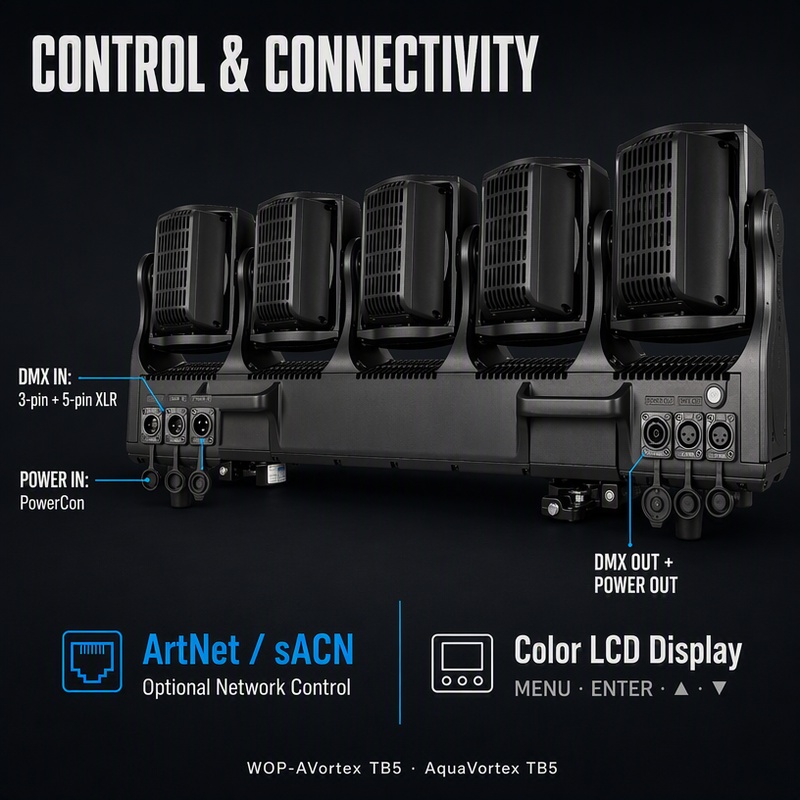

Extensive Control Options: DMX512, Auto-run, Sound Activated, Master/Slave with 6 channel modes (21 / 41 / 71 / 75 / 85 / 170 CH)
Outdoor Ready: Full IP65 protection for festivals, stadiums, and outdoor installations
Professional Reliability: Average LED lifespan of 20,000 hours and robust construction
| Item | Specification |
|---|---|
| Voltage | AC110-240V, 50/60Hz |
| Power Consumption | 780W |
| Light Source | Main: 5 × 120W RGBL High Brightness LEDs Outer Circle: 120 × 0.5W RGB LEDs (24 per head) |
| LED Lifespan | Average 20,000 hours |
| Beam Angle / Zoom | 4° – 32° Linear Motorized Zoom |
| Movement | Pan: 60° / Tilt: 220° |
| Control Modes | DMX512, Auto-run, Sound Activated, Master/Slave |
| DMX Channels | 21 / 41 / 71 / 75 / 85 / 170 Channels (6 modes) |
| Dimming | 0-100% Smooth Linear Dimming with 4 selectable curves |
| Strobe | 1-25 Hz with Pulse Effect |
| Color System | Linear CTO + Outstanding RGBL Color Mixing |
| Dynamic Effects | 5 individually controllable heads + independent pixel rings |
| Protection Rating | IP65 (Waterproof & Dustproof) |
| Fixture Dimensions | 1019 × 206.5 × 352.5 mm |
| Net Weight | 29 kg |
| Gross Weight | 34 kg |

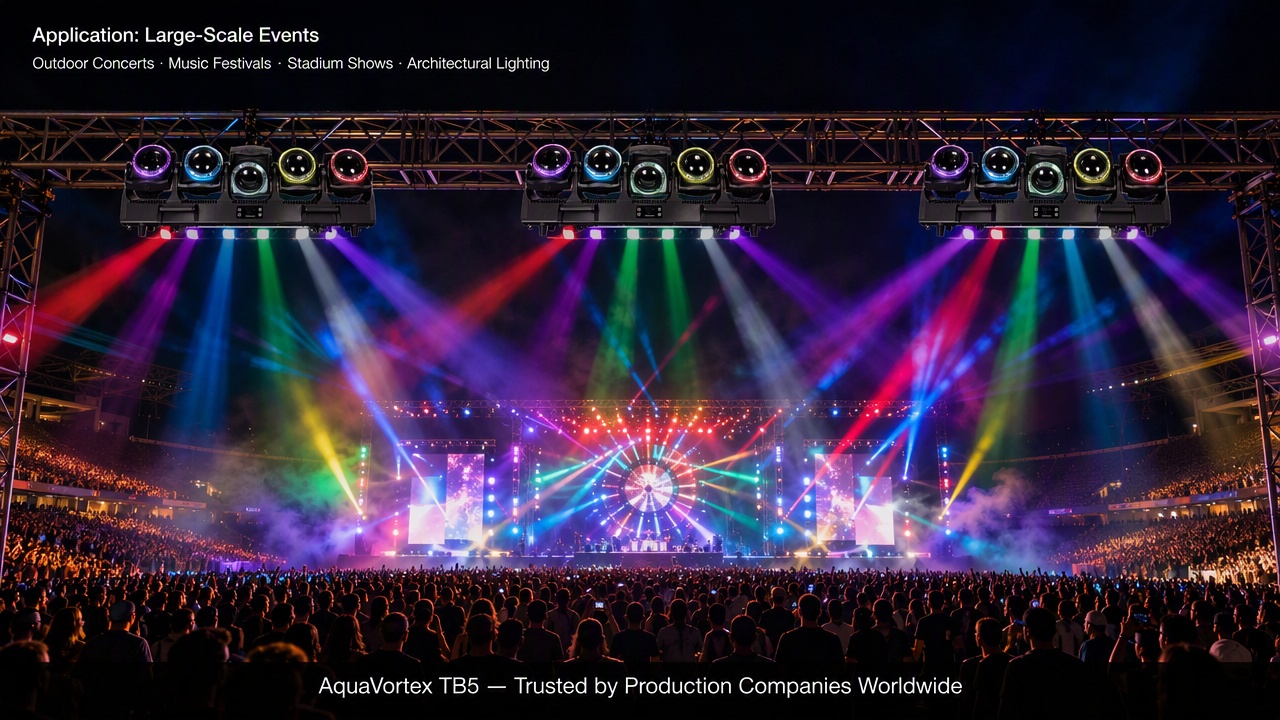

Ideal Applications
Outdoor concerts and music festivals
Stadium shows and large-scale events
Architectural and facade lighting
Theme parks and outdoor entertainment venues
Professional lighting rental companies
Standard export carton packing or Flight case
Chargeable Flight case ( For Wireless Battery LED Lights )
3-20 days after confirming order,detail delivery date should be decided according to
production season, order quantity and shipping methods.
1. We will provide more precisely and efficiently manufacture and serve according to clients' drawings.
2. We have professional QC team to ensure your product much better.
3. Check the raw material before starting production.
4. Have the random inspection during the processing.
5. Make the 100% inspection before the shipments.
Guangzhou Wincode Optronics Co., Limited is a professional OEM,ODM,OBM manufacturer and exporter which specialized in manufacturing and marketing variety stage lights, PRO Lights, Architectural Lights, Commercial Lights. With much experiences and strict ISO9001 international standards. We are running our own brand "Wincode Optronics" in the global market for lighting. Our products are suitable for various entertainment and recreation place, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and so on.
Q1. How is your product quality?
Our products are made complying to CE/RoHS/UL standards, and tested for 48hrs before shipping ensuring items function well.
Q2. Why your pricing is higher than many other factories?
There’s no lowest price in the market.Pricing in WINCODE OPTRONICS is quite middle level, to ensure our requirements on quality and service, while be responsible for customers.
Q3. How to order lighting items from you?
You can contact our sells personnel to confirm what you need. You will be receiving a proforma invoice to confirm order and pay.
Q4. What payment modes are available?
T/T, Western Uion, Paypal , Money Gram are acceptable.
Q5. What’s the lead time for my order?
Usually for sample order, it takes roughly 5-7 business days.
While official mass order will take 15 to 20 business days to ship.
